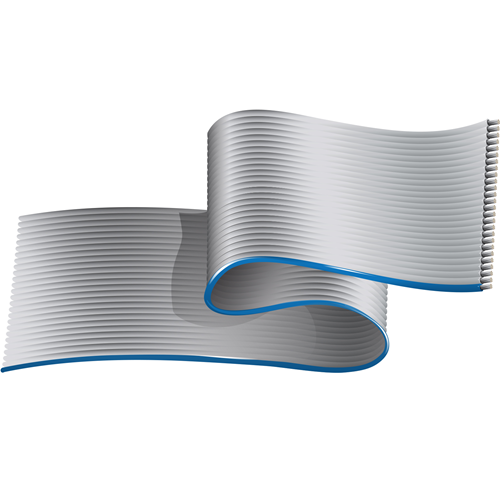

Belden 2L28050 28 AWG 50 Conductor 7x36 Stranding 1mm Pitch 300V Flat Gray Ribbon Cable

Description:

Flat Gray Ribbon Cable 1.00mm Pitch, 2L280XX Series, 50 Conductor, 28 AWG (7x36) Tinned Copper, PVC Insulation.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.010 in (0.25 mm)
• Nom. Insulation Diameter: 0.0354 in (0.899 mm)
• Conductor Spacing Center-Center: 0.0394 +/- 0.003 in
• Conductor Spacing Center-Center Outside: 1.929 +/- 0.012 in

Conductor DCR:

• Nominal Conductor DCR: 68.2 Ohm/1000ft (224 Ohm/km)

Standards:

• Voltage Rating: 300 V
• Operating Temperature: -40°C to +105°C

Applications:

• Internal interconnection, internal wiring of electronic equipment, designed for the disk drive market, where the 2.00mm IDC connector is widely used

Specifications:

• Size (AWG): 28
• No. of Conductor: 50
• Stranding: 7x36
• Conductor Material: TC - Tinned Copper
• Part Number: 2L28050
