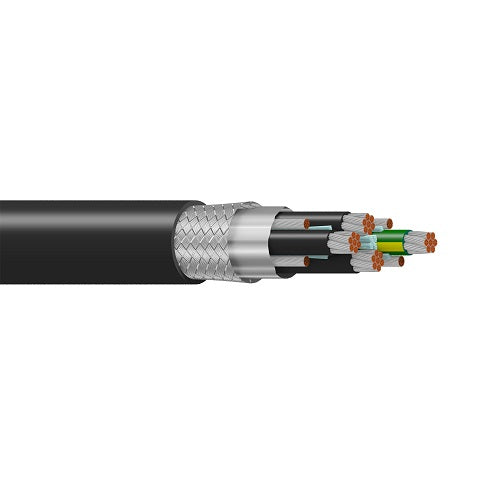

Belden 29539 8 AWG 3 Conductor 7x19x29 Stranding Tinned Copper 1000V Variable Frequency Drives Cable

Description:

Belden 300% Ground Flexible VFD, 3 Conductor 8 AWG (7x19x29) Tinned Copper, XLPE Insulation M4 Color Code+PVC Insulated Ground, Overall Beldfoil+Tinned Copper Braid(85%) Shield w/3-14AWG Tinned Copper Drains, Black PVC Outer Jacket, 2000V TC-ER 90C Dry/Wet 2000V Flexible Motor Supply Cable WTTC 1000V CSA AWM I/II A/B 600V CIC TC SUN RES DIR BUR Oil Resistant.

Insulation:

Element: Conductor(s):-
Material: XLPE - Cross-Linked Polyethylene (Thermoset)
Nom. Thickness: 0.072 in (1.8 mm)

Element: Ground:-
Material: XLPE - Cross-Linked Polyethylene (Thermoset)
Nom. Thickness: 0.072 in (1.8 mm)

Outer Shield:

• Shield Type Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Coverage: 100%

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage 85%

Outer Jacket:

• Material:  PVC - Polyvinyl Chloride
• Nom. Thickness: 0.095 in (2.4 mm)
• Nom. Diameter: 0.949 in (24.1 mm)
• Overall Cable Diameter (Nominal): 0.949 in (24.1 mm)

Standards:-

• Operating Temperature Range: -40°C To +90°C
• Conductor(s) Nom. Characteristic Impedance: 56 Ohm
• UL Voltage Rating: 2000 V (TC, C(UL) TC), 1000 V (WTTC, UL Flexible Motor Supply Cable, CSA AWM I/II A/B)

Applications:

• Variable Frequency Drives (VFD); AC Motor and Drive Systems; High voltage requirements
