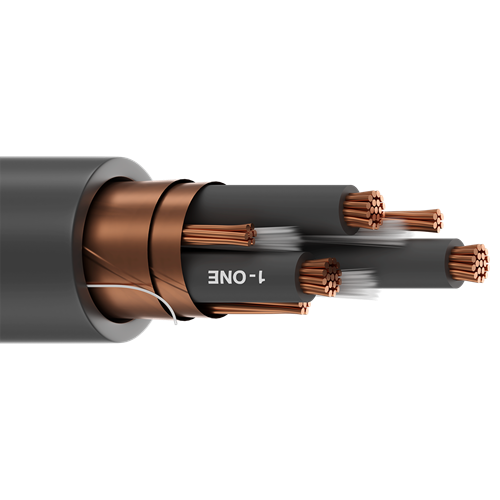

Belden 29532C 4/0 AWG 3 Conductor 19x10 Stranding 600V Variable Frequency Drives Cable

Description:

Belden Basics VFD, 3 Conductor 4/0AWG (19x10) Bare Copper XLPE Insulation M4 Color Code + 3AWG Symmetrical Segmented Ground (3 of 8AWG) Bare Copper Stranded in Continuous Contact with Overall Dual Copper Tape Helically Applied Shield, Black PVC Outer Jacket, 600/1000V TC-ER 90C Dry/Wet 1000V CSA AWM I/II A/B SUN RES DIR BUR Oil Resistant.

Insulation:

Element: Conductor(s):-
Material: XLPE - Cross-Linked Polyethylene (Thermoset)
Nom. Thickness: 0.059 in (1.5 mm)
Nom. Insulation Diameter: 0.630 in (16.0 mm)

Outer Shield:

• Shield Type: Helical Tape
• Material: Bare Copper (BC)
• Coverage: 100%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.083 in (2.1 mm)
• Nom. Diameter: 1.536 in (39.01 mm)
• Overall Cable Diameter (Nominal): 1.536 in (39.01 mm)

Applications:

• Variable Frequency Drives (VFD); AC Motor and Drive Systems;Class 1 Division 2 Hazardous Locations
