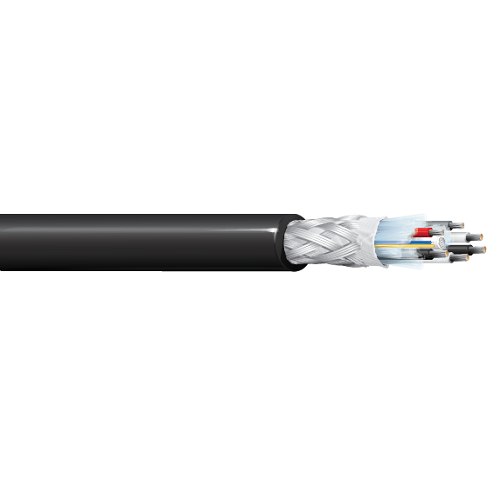

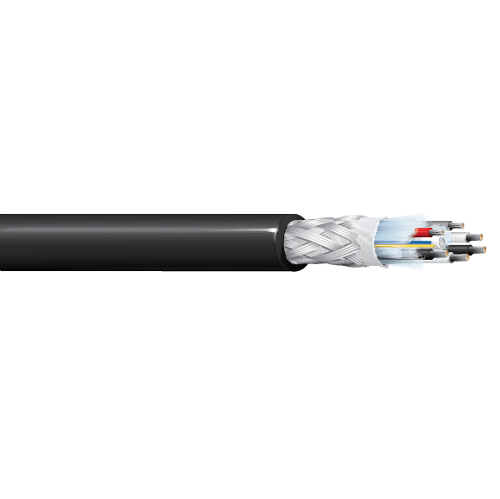

Belden 2824RW 24 AWG 6 Conductor 18 AWG 6 Conductor 6 Fiber 3 Channel SMPTE Stadium Cable

Description:-

Indoor/Outdoor, 3-Channel SMPTE Stadium Cable, 6 Single Mode Fibers, 6 TC Conductor 18 AWG (19x30) and 6 TC Conductor 24 AWG (7x32), Beldfoil Shields, Water Blocking Tape, CPE Jacket.

Product Overview:-

• Product Category: SMPTE Cable
• Suitable Applications: 3 Channel Composite Camera Cable

Insulation:-

• Material: PVC - Polyvinyl Chloride

Standards:-

• Operating Temperature Range: -40°C to 70°C

Specifications:-

• Size (AWG): 24
• No. of Conductors: 6
• Stranding: 7x32
• Conductor Material: TC - Tinned Copper

• Size (AWG): 18
• No. of Conductors: 6
• Stranding: 19x30
• Conductor Material: TC - Tinned Copper

• Fiber Count: 6
• Fiber Type: OS2, G.657.A2
• Fiber Buffer Material: PVC - Polyvinyl Chloride
• Fiber Buffer Diameter: 900 µm
• Part Number: 2824RW
