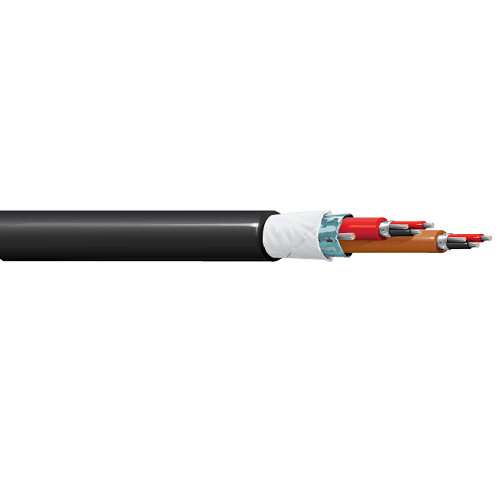

Belden 2818RW 22 AWG 12 Pair 7x30 Stranding Tinned Copper 300V Audio Snake Cable

Description:-

Audio Snake Cable, 12 Pair 22 AWG (7 x 30) Tinned Copper, PP Insulation, Individually Foil Shielded and PVC Jacketed, Overall Beldfoil Shield, Waterblocking Tape, CPE jacket, Ripcord, CMR.

Insulation:-

• Material: PP - Polypropylene
• Nom. Thickness: 0.010 in (0.25 mm)
• Nom. Insulation Diameter: 0.05 in (1.3 mm)

Inner Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage [%]: 100%
• Drainwire Type: 22 AWG (7x30) TC - Tinned Copper

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage [%]: 100%
• Drainwire Type: 18 AWG (19x30) TC - Tinned Copper
• Waterblock Tape

Inner Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.133 in (3.38 mm)

Outer Jacket:-

• Material: CPE - Chlorinated Polyethylene
• Nom. Thickness: 0.064 in (1.6 mm)
• Nom. Diameter: 0.701 in (17.8 mm)
• Overall Cable Diameter (Nominal): 0.701 in (17.8 mm)

Standards:-

• UL Voltage Rating: 300 V (CMR)
• Nom. Characteristic Impedance: 50 Ohm
• Operating Temperature Range: -20°C to +75°C

Applications:-

• Multi-channel interconnect between audio equipment such as microphones, speakers, amplifiers, mixing consoles; Live events or studio sound; Analog audio; Dual-purpose indoor/outdoor with no transition; Below-grade, wet-locations

Specifications:-

• Size (AWG): 22
• No. of Pairs: 12
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• Part Number: 2818RW
