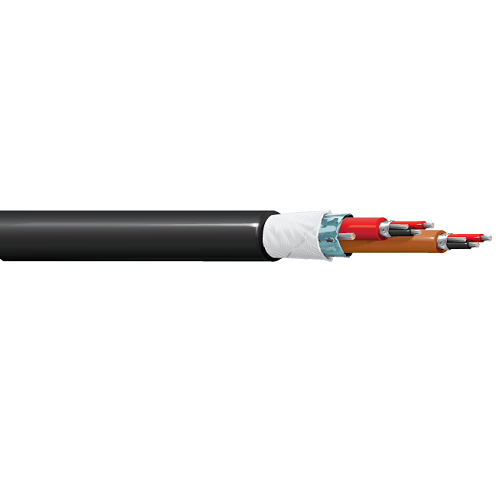

Belden 2815RW 22 AWG 4 Pair 7x30 Stranding Tinned Copper 300V Analog Audio Snake Cable

Description:-

4 Pair 22 AWG stranded (7x30) TC conductor, polyolefin insulation, individually shielded with bonded Beldfoil, numbered/color-coded PVC jackets; jackets and shields are bonded so both strip simultaneously, water-blocking tape, overall black CPE jacket and nylon rip cord.

Insulation:-

• Material: PP - Polypropylene
• Nom. Insulation Diameter: 0.05 in (1.3 mm)

Inner Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage [%]: 100%

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage [%]: 100%

Inner Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.133 in (3.38 mm)

Outer Jacket:-

• Material: CPE - Chlorinated Polyethylene
• Nom. Diameter: 0.432 in

Standards:-

• UL Voltage Rating: 300 V RMS
• Nom. Characteristic Impedance: 50 Ohm
• Operating Temperature Range: -20°C To +75°C

Applications:-

• Analog audio, burial, Sports Stadium

Specifications:-

• Size (AWG): 22
• No. of Pairs: 4
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• Part Number: 2815RW
