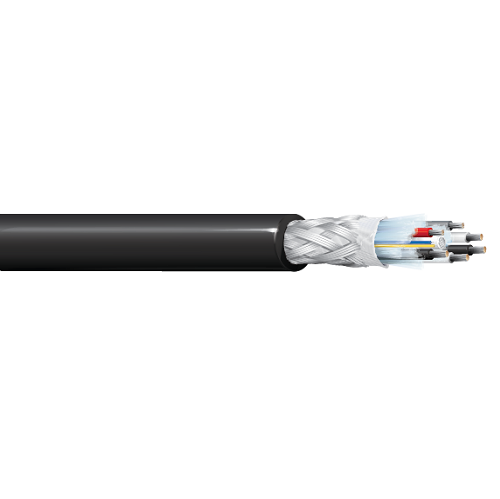

Belden 2804RW 24 AWG 2 Conductor 20 AWG 4 Conductor 2 Fiber Industry Standard SMPTE 311M Cable

Description:-

Indoor/Outdoor, Industry Standard SMPTE 311M Cable, 2 Single Mode Fibers, 4 TC Conductor 20 AWG (19x32), 2 TC Conductor 24 AWG (7x32), PVC Insulation, TC Braid Shield (95% coverage), Water Blocking Tape, CPE Jacket.

Product Overview:-

• Product Category: SMPTE Cable
• Suitable Applications: SMPTE 311

Insulation:-

• Material: PVC - Polyvinyl Chloride

Standards:-

• Operating Temperature Range: -40°C To +70°C

Specifications:-

• Size (AWG): 24
• No. of Conductors: 2
• Stranding: 7x32
• Conductor Material: TC - Tinned Copper

• Size (AWG): 20
• No. of Conductors: 4
• Stranding: 19x32
• Conductor Material: TC - Tinned Copper

• Fiber Count: 2
• Fiber Type: OS2, G.657.A2
• Fiber Buffer Material: PVC - Polyvinyl Chloride
• Fiber Buffer Diameter: 900 µm
• Part Number: 2804RW
