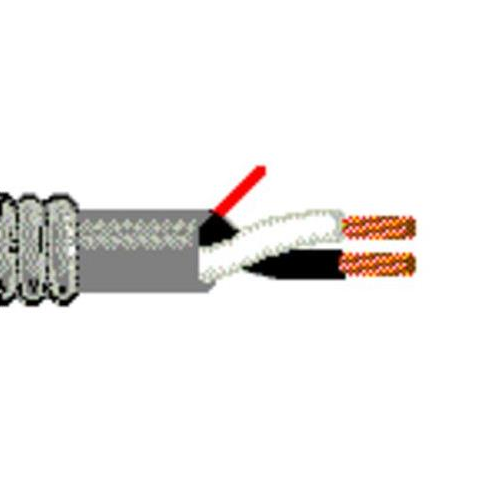

Belden 25000UE 12 AWG 2 Conductor 19x25 Stranding Bare Copper 300V Security and Sound Cable

Description:-

Security and Commercial Audio Cable, Riser-CMR, 2-12 AWG stranded bare copper conductors with PVC insulation, PVC jacket with ripcord, Aluminum interlocking armor.

Insulation:-

• Material: PP - Polypropylene
• Nom. Thickness: 0.011 in (0.28 mm)
• Nom. Insulation Diameter: 0.113 in (2.87 mm)

Inner Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.17 in (4.3 mm)
• Nom. Diameter: 0.260 in (6.60 mm)

Armor:-

• Type of Armor: Interlocked
• Material: Aluminum
• Diameter over Armoring: 0.471 in

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: -20°C To +75°C

Applications:-

• Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls

Specifications:-

• Size (AWG): 12
• No. of Conductor: 2
• Stranding: 19x25
• Conductor Material: BC - Bare Copper
• Part Number: 25000UE
