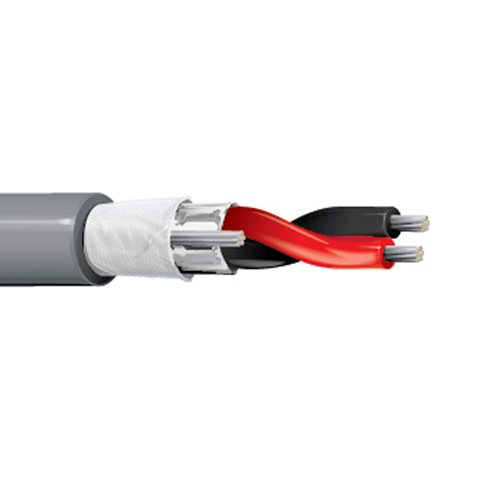

Belden 2451RW 22 AWG 1 Pair 7x30 Stranding Tinned Copper 300V Line Level Audio Cable

Description:-

Line Level Audio Cable, 1 Pair 22 AWG (7x30) Tinned Copper, PP Insulation, Overall Beldfoil Shield, Waterblocking Tape, CPE jacket, CMR.

Insulation:-

• Material: PP - Polypropylene
• Nom. Thickness: 0.009 in (0.23 mm)
• Nom. Insulation Diameter: 0.046 in (1.2 mm)

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage [%]: 100%
• Drainwire Type: 22 AWG (7x30) TC - Tinned Copper
• Waterblock Tape

Outer Jacket:-

• Material: CPE - Chlorinated Polyethylene
• Nom. Thickness: 0.023 in (0.58 mm)
• Nom. Diameter: 0.158 in (4.01 mm)
• Overall Cable Diameter (Nominal): 0.158 in (4.01 mm)

Standards:-

• UL Voltage Rating: 300 V (CMR)
• Nom. Characteristic Impedance: 45 Ohm
• Operating Temperature Range: -20°C to +75°C

Applications:-

• Line level audio; Low voltage analog signals; Dual-purpose indoor/outdoor with no transition, Below-grade, Wet locations

Specifications:-

• Size (AWG): 22
• No. of Pairs: 1
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• Part Number: 2451RW
