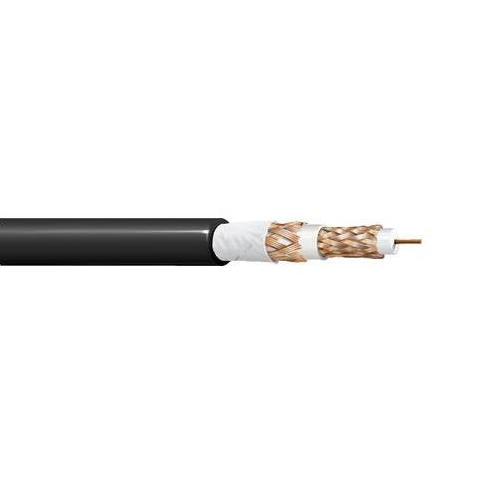

Belden 2233RW 14 AWG 1 Conductor Solid Bare Copper 300V Triax Coax Cable

Description:-

RG-11/U Triax, 14 AWG solid 0.064" bare copper conductor, gas-injected foam HDPE insulation, bare copper double shields (95% and 80% coverage), PVC insulation between braids, water blocking tape, CPE jacket, CMR rated

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter: 0.285 in (7.24 mm)
• Gas Injected

Inner Shield:-

• Shield Type: Braid
• Material: Bare Copper (BC)
• Coverage: 95%

Outer Shield:-

• Shield Type: Braid
• Material: Bare Copper (BC)
• Coverage: 80%

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.365 in (9.27 mm)

Outer Jacket:-

• Material: CPE - Chlorinated Polyethylene
• Nom. Diameter: 0.475 in

Standards:-

• UL Voltage Rating: 300 V RMS
• Nom. Characteristic Impedance: 75 Ohm
• Operating Temperature Range: -30°C To +75°C

Applications:-

• Analog audio, burial, Sports Stadium

Specifications:-

• Size (AWG): 14
• No. of Conductor: 1
• Stranding: Solid
• RG Type: 11
• Nom. Diameter: 0.064 in
• Conductor Material: BC - Bare Copper
• Part Number: 2233RW
