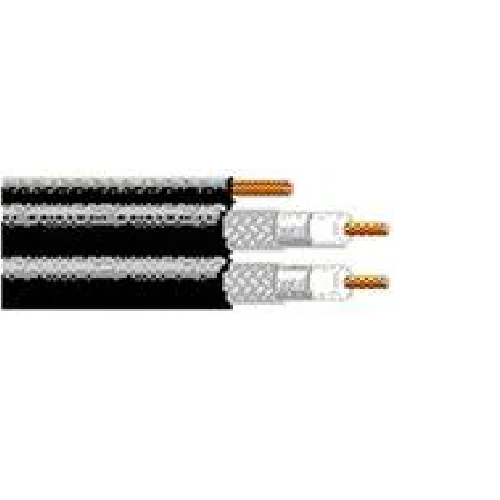

Belden 1840A 18 AWG 2 Conductor Solid Bare Copper Covered Steel 350V DBS Dual Coax Cable

Description:

Series 6, 18 AWG solid 0.040" bare copper-covered steel conductor, gas-injected foam polyethylene insulation, Duobond II, Al. braid shield (60% coverage),
PVC jacket.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nominal Diameter: 0.18 in
• Gas Injected

Outer Shield:

• Layer: 1
• Outer Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Material Trade Name: Duofoil
• Coverage: 100%

• Layer: 2
• Outer Shield Type: Braid
• Material: Aluminum
• Coverage: 60%
• CoreGuard

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nominal Diameter: 0.273 x 0.703 in

Construction and Dimensions:

• Static Ground: BCCS - Bare Copper Covered Steel
• Static Ground Diameter: 0.045 in

Standards:

• Voltage Rating: 350 V RMS
• Operating Temperature: -40°C To +80°C
• Nom. Characteristic Impedance: 75 Ohm

Specifications:

• Size (AWG): 18
• No. of Conductor: 2
• Stranding: Solid
• RG Type: 6/U Type
• Series Type: 6
• Nom. Diameter: 0.04 in
• Conductor Material: BCCS - Bare Copper Covered Steel
• Part Number: 1840A
