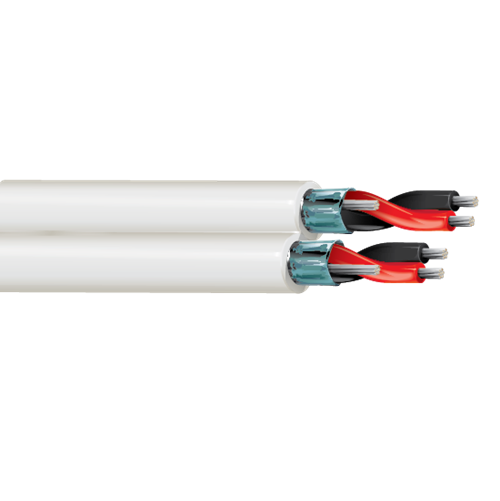

Belden 1802B 24 AWG 2 Pair 7x32 Stranding Tinned Copper 300V Digital Audio Cable

Description:

Digital Audio Cable, 2 pair 24 AWG stranded tinned copper with Datalene insulation, Beldfoil shield, drain, CMR PVC jacket, parallel construction.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nom.Insulation Diameter: 0.68 in (17 mm)

Inner Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.180 x 0.360 in

Standards:

• Voltage Rating: 300 V RMS
• Operating Temperature: -30°C To +60°C
• Nom. Characteristic Impedance: 110 Ohm

Applications:

• Multi-channel interconnect between audio equipment such as microphones, speakers, amplifiers, mixing consoles; Live events or studio sound; Analog audio

Specifications:

• Size (AWG): 24
• No. of Pair: 2
• Stranding: 7x32
• Conductor Material: TC - Tinned Copper
• Part Number: 1802B
