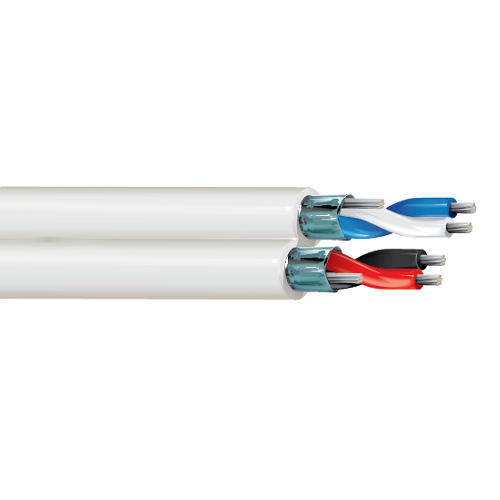

Belden 1801BD 24 AWG 2 Pair 7x32 Stranding Tinned Copper 300V Audio Snake Cable

Description:-

Digital Audio Snake Cable, Plenum-CMP, 2-24 AWG tinned copper pairs, foam FEP insulation, Flamarrest jacket, Parallel construction.

Insulation:-

• Material: FEP - Fluorinated Ethylene Propylene (Foam)
• Nom. Insulation Diameter: 0.066 in (1.7 mm)

Inner Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)

Outer Shield:-

• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.165 x 0.345 in

Standards:-

• UL Voltage Rating: 300 V RMS
• Nom. Characteristic Impedance: 110 Ohm
• Operating Temperature Range: -20°C To +60°C

Applications:-

• Recording Studio, Radio Broadcast, Sports Stadium, Nurse Call

Specifications:-

• Size (AWG): 24
• No. of Pairs: 2
• Stranding: 7x32
• Conductor Material: TC - Tinned Copper
• Part Number: 1801BD
