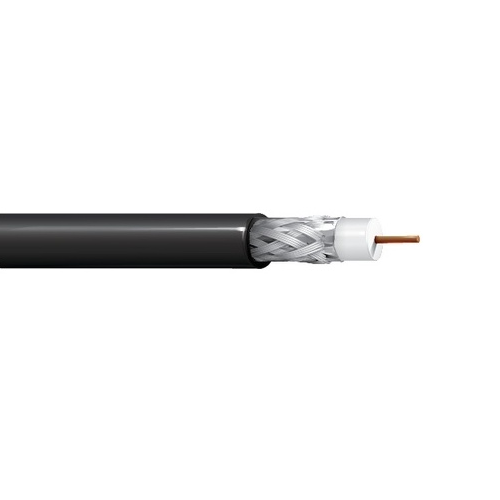

Belden 179DTNH 28.5 AWG 1 Conductor Solid Bare Copper 300V Low Loss Serial Digital Coax Cable

Description:-

Low Loss Serial Digital Coax, Ultra-miniature, RG-179/U Type, 28.5 AWG solid bare copper conductor, foam HDPE core, Duofoil, + 95% tinned copper braid, LSZH jacket.

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter: 0.056 in (1.4 mm)
• Gas Injected

Outer Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Coverage: 100%
• Material Trade Name: Duofoil

• Layer: 2
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 95%

Outer Jacket:-

• Material: PPO - Polyphenylene Oxide
• Nom. Diameter: 0.106 in

Standards:-

• UL Voltage Rating: 300 V RMS
• Nom. Characteristic Impedance: 75 Ohm
• Operating Temperature Range: -30°C To +75°C

Applications:-

• Broadcast Mobile Trucks, Digital Video, Precision Video, Telecommunications

Specifications:-

• Size (AWG): 28.5
• No. of Conductor: 1
• Stranding: Solid
• Nom. Diameter: 0.012 in
• RG Type: 179
• Conductor Material: BC - Bare Copper
• Part Number: 179DTNH
