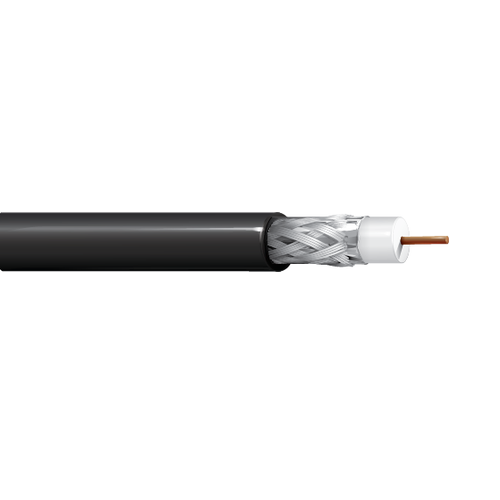

Belden 1695PX 18 AWG 1 Conductor Solid Bare Copper 300V SDI Coax Cable

Description:-

75 Ohm SDI Coax, RG-6, 18 AWG Solid Bare Copper Conductor, FEP Insulation, Foil + 95% Tinned Copper Braid Shield, PVDF Jacket, Indoor/Outdoor CMP

Insulation:-

• Material: FEP - Fluorinated Ethylene Propylene (Foam)
• Nom. Insulation Diameter: 0.170 in (4.32 mm)

Outer Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Coverage: 100%
• Material Trade Name: Duofoil

• Layer: 2
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 95%

Outer Jacket:-

• Material: FEP - Fluorinated Ethylene Propylene
• Nom. Diameter: 0.229 in (5.82 mm)
• Overall Cable Diameter (Nominal): 0.229 in (5.82 mm)

Standards:-

• UL Voltage Rating: 300 V (CMP)
• Nom. Characteristic Impedance: 75 Ohm
• Operating Temperature Range: -20°C to 125°C

Applications:-

• Outside Plant, Digital Video, 6 Gb/s UHDTV, HD-SDI 1080p

Specifications:-

• Size (AWG): 18
• No. of Conductor: 1
• Stranding: Solid
• RG Type: 6
• Nom. Diameter: 0.040 in
• Conductor Material: BC - Bare Copper
• Part Number: 1695PX
