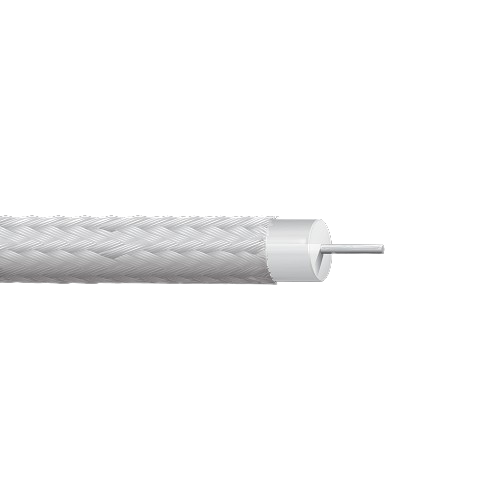

Belden 1671B 24 AWG 1 Conductor Solid Silvered Copper 50 Ohm Microwave Coax Cable

Description:-

50 Ohm, RG-405/U type, 24 AWG solid 0.020" silver-plated copper conductor, PTFE insulation, copper-tin composite shield (100% coverage), unjacketed.

Insulation:-

• Material: PTFE - Polytetrafluoroethylene
• Nominal Diameter: 0.062 in
• Material Trade Name: Teflon

Outer Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Bare Copper (BC)
• Coverage: 100%

• Layer: 2
• Shield Type: Braid
• Material: Tinned Copper (TC + Tin Filled)
• Coverage: 100%

Standards:-

• Nominal Characteristic Impedance: 50 Ohm
• Operating Temperature Range: -70°C To +200°C
• UL Voltage Rating: 30 V RMS (UL AWM Style 10245)

Applications:-

• Microwave

Specifications:-

• Size (AWG): 24
• No. of Conductor: 1
• Stranding: Solid
• Nominal Diameter: 0.02 in
• Conductor Material: Silvered Copper
• Part Number: 1671B
