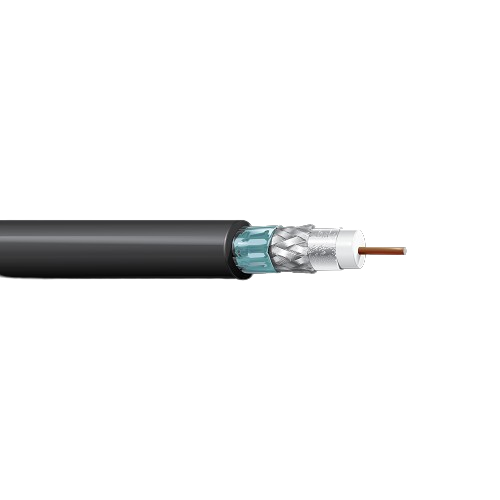

Belden 1613AP 18 AWG 1 Conductor Solid Bare Copper Covered Steel 300V Broadband Coax Cable

Description:-

Broadband Coax, Series 6, 18 AWG Solid Bare Copper Covered Steel Conductor, FEP Insulation, Foil + 77% Aluminum Braid + Foil Shield, Flamarrest Jacket, CMP.

Insulation:-

• Material: FEP - Fluorinated Ethylene Propylene (Foam)
• Nom. Insulation Diameter: 0.170 in (4.32 mm)

Outer Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Coverage: 100%
• Material Trade Name: Duofoil

• Layer: 2
• Shield Type: Braid
• Material: Aluminum
• Coverage: 77%

• Layer: 3
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Material Trade Name: Beldfoil

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.239 in (6.07 mm)

Standards:-

• UL Voltage Rating: 300 V (CMP)
• Nom. Characteristic Impedance: 75 Ohm
• Operating Temperature Range: -5°C to +75°C

Applications:-

• Broadband, Cable Television (CATV), RF drop cable, Over-The-Air (OTA) antennas

Specifications:-

• Size (AWG): 18
• No. of Conductor: 1
• Stranding: Solid
• Series Type: 6
• Nom. Diameter: 0.040 in
• Conductor Material: BCCS - Bare Copper Covered Steel
• Part Number: 1613AP
