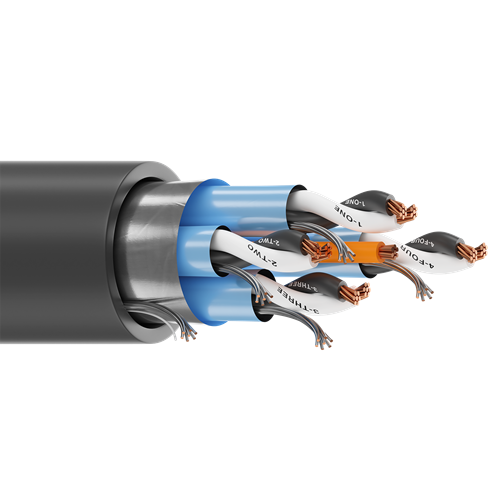

Belden 1475A 18 AWG 4 Pair 7x26 Stranding Bare Copper 300V Instrumentation PLTC Cable

Description:

UL Instrumentation, 4 Pair 18+22 AWG (7x26+7x30) Bare Copper, PVC Insulation E1 Color Code, Individual and Overall Beldfoil Shield, Black PVC Outer Jacket, PLTC ITC CMG AWM 2464 SUN RES.

Insulation:

Element: Pair(s)
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.017 in (0.43 mm)
• Nom. Insulation Diameter: 0.080 in (2.0 mm)

Element: Comm Wire(s)
• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.019 in (0.48 mm)
• Nom. Insulation Diameter: 0.066 in (1.7 mm)

Inner Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 20 AWG (7x28) TC - Tinned Copper

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 18 AWG (7x26) TC - Tinned Copper

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.053 in (1.3 mm)
• Nom. Diameter: 0.494 in (12.5 mm)
• Overall Cable Diameter (Nominal): 0.494 in (12.5 mm)

Standards:

• Operating Temperature: -30°C to +105°C
• Voltage Rating: 300 V (PLTC, CMG, AWM 2464), 150 V (ITC)

Applications:

• Industrial Control, Raceways, Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, ...), low voltage digital control (24v, …), encoders, control circuits, distributed control system (DCS), programmable logic controller (PLC), Solenoids, Valves, Actuators, Positioners
