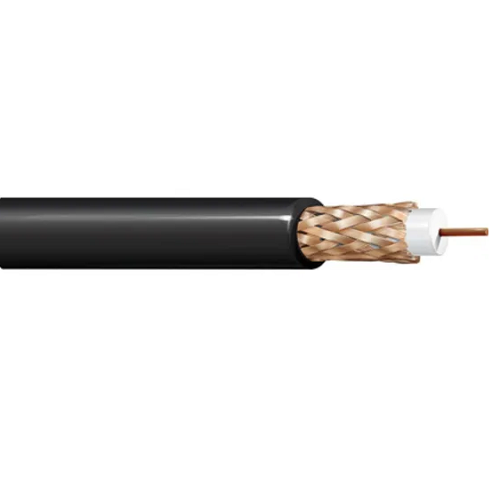

Belden 1426A 20 AWG 1 Conductor Solid Bare Copper 300V Analog Video Coax Cable

Description:-

20 AWG Solid 0.032" bare copper conductor, gas-injected foam HDPE insulation, bare copper braid shield (95% coverage), PVC jacket.

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nominal Diameter: 0.145 in
• Gas Injected

Outer Shield:-

• Shield Type: Braid
• Material: Bare Copper (BC)
• Coverage: 95%

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.242 in

Standards:-

• UL Voltage Rating: 300 V RMS (CM)
• Nominal Characteristic Impedance: 75 Ohm
• Operating Temperature Range: -30°C To +75°C

Specifications:-

• Size (AWG): 20
• No. of Conductor: 1
• Stranding: Solid
• Conductor Material: BC - Bare Copper
• Nominal Diameter: 0.032 in
• Part Number: 1426A
