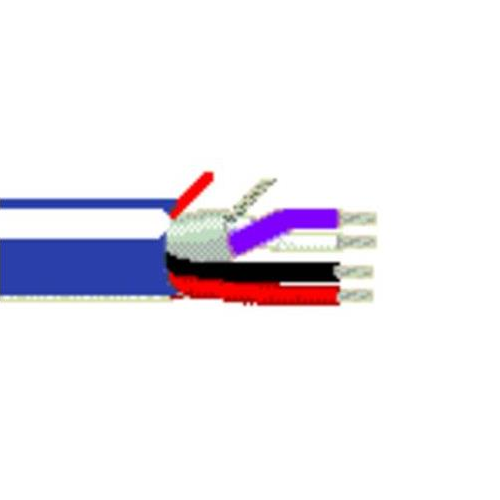

Belden 1387LA 22 AWG 1 Pair 18 AWG 2 Conductor Bare Copper 300V Lighting and Automation Cable

Description:-

Lighting and Automation Cable, 2 conductor 18 AWG stranded (19x30) bare copper unshielded, PP insulation and 1 pair 22 AWG stranded (7x30) bare copper, PP insulation, Beldfoil shield with drain, CL3 and CM rated PVC jacket.

Insulation:-

• Material: PP - Polypropylene

Inner Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.335 in

Standards:-

• UL Voltage Rating: 300 V RMS

Applications:-

• Lutron Sivoia QS System

Specifications:-

Element: 22 AWG
• Size (AWG): 22
• No. of Pair: 1
• Stranding: 7x30
• Conductor Material: BC - Bare Copper

Element: 18 AWG
• Size (AWG): 18
• No. of Conductor: 2
• Stranding: 19x30
• Conductor Material: BC - Bare Copper
• Part Number: 1387LA
