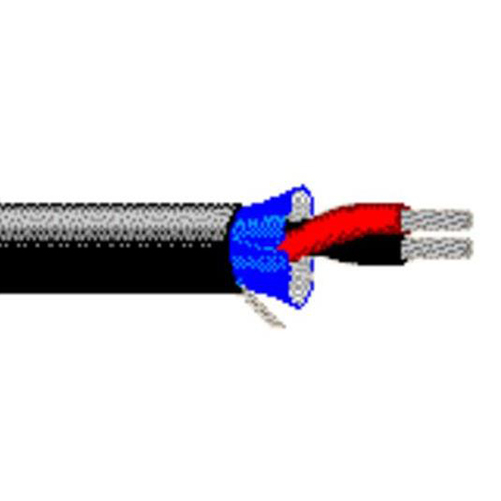

Belden 1350SB 24 AWG 1 Pair 7x32 Stranding Tinned Copper 300V Digital Audio Cable

Description:-

Digital Audio Cable, Rated-CMG-LS, 1-24 AWG tinned copper pair, Datalene insulation, overall Beldfoil shield, drain, LSZH jacket.

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter: 0.058 in (1.5 mm)

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage [%]: 100%

Outer Jacket:-

• Material: LSZH - Low Smoke Zero Halogen (Flame Retardant)
• Nom. Diameter: 0.179 in

Standards:-

• UL Voltage Rating: 300 V RMS
• Nom. Characteristic Impedance: 100 Ohm
• Operating Temperature Range: -30°C To +75°C

Applications:-

• Shipboard, ABS, Digital Audio, Analog Audio, Low Capacitance, Low Cap, Instrumentation, Control, EIA RS-232, EIA RS-422, EIA RS-485

Specifications:-

• Size (AWG): 24
• No. of Pairs: 1
• Stranding: 7x32
• Conductor Material: TC - Tinned Copper
• Part Number: 1350SB
