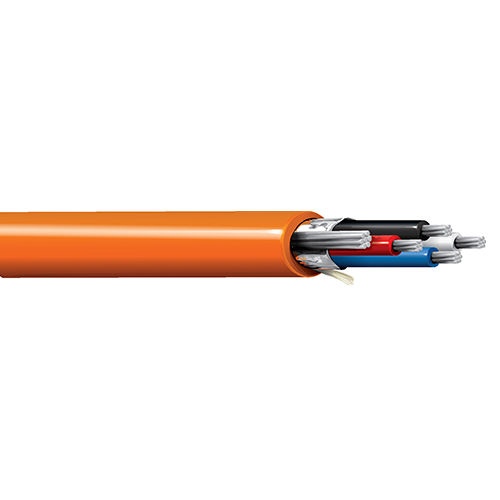

Belden 1335A 16 AWG 1 Pair 7x24 Stranding Tinned Copper 300V Fieldbus Cable

Description:

Fieldbus, 2 Conductor 16 AWG (7x24H) Tinned Copper, PO Insulation, Overall Beldfoil+Tinned Copper Braid (65%) Shield, Orange PVC Outer Jacket, CM.

Insulation:

• Material: PP - Polypropylene

Outer Shield:

• Layer: 1
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Material Trade Name: Beldfoil
• Coverage: 100%
• Drainwire Type: 20 AWG (7x28) TC - Tinned Copper

• Layer: 2
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 65%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.34 in

Standards:

• Voltage Rating: 300 V RMS
• Operating Temperature: -30°C to +90°C
• Nominal Characteristic Impedance: 100 Ohm

Applications:

• harsh environment, digital and serial two-way communication, oil and gas extraction and refining sites, petrochemical, Profibus process automation or Foundation FieldBus process automation, extreme temperature environments, exposure to humidity/moisture, dust, and oil, remote locations long-distance applications, etc.

Specifications:

• Size (AWG): 16
• No. of Pair: 1
• Stranding: 7x24
• Conductor Material: TC - Tinned Copper
• Part Number: 1335A
