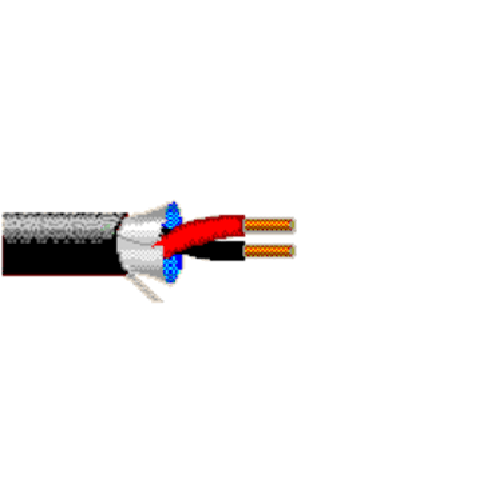

Belden 1320SB 18 AWG 2 Conductor Solid Bare Copper 300V Fire Alarm Cable

Description:-

18 AWG solid bare copper conductors, ceramifiable silicone insulation, Beldfoil shield, drain wire, LSZH jacket.

Insulation:-

• Material: Silicone Rubber
• Nom. Thickness: 0.034 in (0.86 mm)
• Nom. Insulation Diameter: 0.109 in (2.77 mm)

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 20 AWG (7x28) TC - Tinned Copper

Outer Jacket:-

• Material: LSZH - Low Smoke Zero Halogen (Flame Retardant)
• Nom. Thickness: 0.045 in (1.1 mm)
• Nom. Diameter: 0.314 in

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: -20°C To +105°C

Applications:-

• Fire Alarm, Shipboard, Low Smoke

Specifications:-

• Size (AWG): 18
• No. of Conductor: 2
• Stranding: Solid
• Conductor Material: BC - Bare Copper
• Part Number: 1320SB
