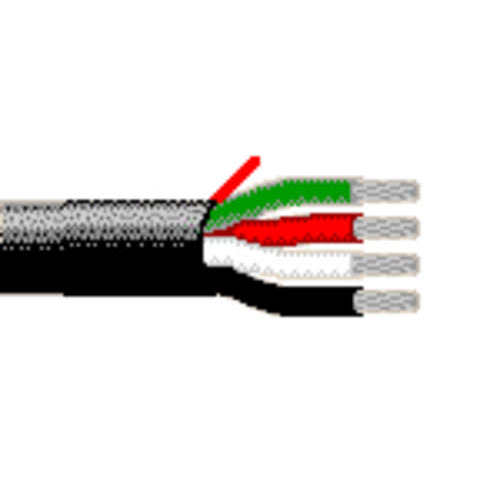

Belden 1317SB 12 AWG 4 Conductor 65x30 Stranding Tinned Copper 300V Shipboard Speaker Cable

Description:-

Shipboard Speaker, 4 conductor 12 AWG stranded tinned copper conductors, polypropylene insulation, LSZH jacket with ripcord.

Insulation:-

• Material: PP - Polypropylene
• Nom. Insulation Diameter: 0.115 in (2.92 mm)

Outer Jacket:-

• Material: LSZH - Low Smoke Zero Halogen (Flame Retardant)
• Nom. Diameter: 0.382 in

Standards:-

• UL Voltage Rating: 300 V RMS
• Operating Temperature Range: -30°C To +105°C

Applications:-

• Speaker, Audio, Control, Intercom, ABS Type Approved, Shipboard, CMG-LS, IEEE 45 clause 23, IEC 60092-376 clause 17, 60092-351, 60754-1, 60754-2, 61034, UL1685 FT4 Loading, Limited Smoke, IEC 60332-3-22 (Category A), 60332-1, IEEE 1202

Specifications:-

• Size (AWG): 12
• No. of Conductor: 4
• Stranding: 65x30
• Conductor Material: TC - Tinned Copper
• Part Number: 1317SB
