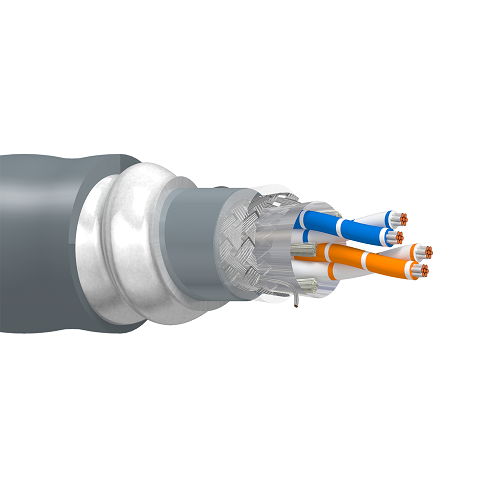

Belden 129842 24 AWG 2 Pair 7x32 Stranding Tinned Copper 300V RS-485 Cable

Description:-

RS-485, 2 Pair 24 AWG (7x32) Tinned Copper, PE Insulation, Overall Beldfoil +Tinned Copper Braid (90%) Shield, PVC Inner Jacket, Aluminum Interlock Armor, PVC Outer Jacket, CM.

Insulation:-

• Material: PE - Polyethylene
• Nom. Thickness: 0.022 in (0.56 mm)

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC - Tinned Copper

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 90%

Inner Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.340 in (8.64 mm)

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.045 in (1.1 mm)
• Nom. Diameter: 0.620 in (15.7 mm)
• Overall Cable Diameter (Nominal): 0.620 in (15.7 mm)

Armor:-

• Armor Type and Material: AIA - Aluminum Interlock Armor

Standards:-

• UL Voltage Rating: 300 V (CM)
• Nom. Characteristic Impedance: 120 Ohm
• Operating Temperature Range: -30°C to +80°C

Applications:-

• Exposure to rodent, crush, or cut-through force, burial, POS, serial communication (RS-485 standard) comprising PLCs, VFDs, HMIs, motors, RTU, SCADA, etc. within noisy environments over long distances, outdoor such as solar, lighting, etc.

Specifications:-

• Size (AWG): 24
• No. of Pairs: 2
• Stranding: 7x32
• Conductor Material: TC - Tinned Copper
• Part Number: 129842
