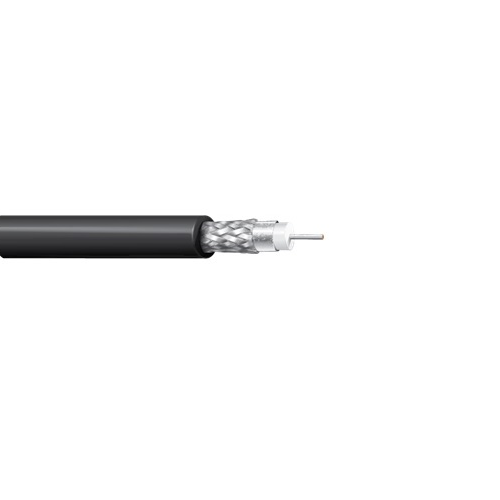

Belden 1282P 25 AWG 1 Conductor Solid Tinned Copper 300V RGB Video Coax Cable

Description:-

Video Coax, Plenum-CMP, 1-25 AWG tinned copper conductor, FPFA insulation, Duofoil bonded to the dielectric +95% tinned copper serve shield, Flamarrest jacket.

Insulation:-

• Material: PFA - Perfluoroalkoxy (Foam)
• Nominal Diameter: 0.074 in

Outer Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Tri-Laminate (Alum+Poly+Alum)
• Coverage: 100%
• Material Trade Name: Duofoil

• Layer: 2
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 95%

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.122 in
• Material Trade Name: Flamarrest

Standards:-

• UL Voltage Rating: 300 V RMS
• Nominal Characteristic Impedance: 75 Ohm
• Operating Temperature Range: -20°C To +75°C

Applications:-

• Analog Video, Digital Video, Mini Hi-Res, video, VGA, SVGA, 825, RGB, Composite Video, Component Video, Video Distribution, Graphic Displays, special effects editing, animation, post production. Home Theater, boardrooms, office, casino, church, synagogue, house of worship, teleconferencing

Specifications:-

• Size (AWG): 25
• No. of Conductor: 1
• Stranding: Solid
• Nominal Diameter: 0.018 in
• RG Type: Sub-miniature 59
• Conductor Material: TC - Tinned Copper
• Part Number: 1282P
