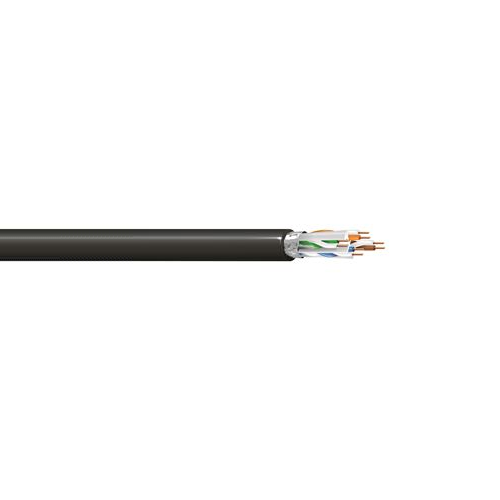

Belden 10GX53F 23 AWG 4 Pair Solid Bare Copper 625MHz Premise Horizontal Cable

Description:-

10GX Category 6A Enhanced Premise Horizontal Cable (625MHz), 4 Pair, 23 AWG Solid Bare Copper Conductors, F/UTP - Foil Shielded, Plenum-CMP, Flamarrest PVC-LS Jacket

Insulation:-

• Material: FEP - Fluorinated Ethylene Propylene

Outer Shield:-

• Layer: 1
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 26 AWG (7x34) TC - Tinned Copper

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.275 in (6.99 mm)
• Overall Cable Diameter (Nominal): 0.275 in (6.99 mm)
• Center Member (Patented EquiSpline)
• Material Trade Name: Flamarrest

Standards:-

• UL Voltage Rating: 300 V (CMP), 300 V (CL3P)
• Operating Temperature Range: -20°C To +75°C

Applications:-

• Premise Horizontal Cable, Ethernet up to 10GBASE-T, Wi-Fi 6, Wi-Fi 5, Surveillance, HDBaseT, PoE++, PoE+, PoE, Noisy Environments

Specifications:-

• Size (AWG): 23
• No. of Pair: 4
• Stranding: Solid
• Conductor Material: BC - Bare Copper
• Part Number: 10GX53F
