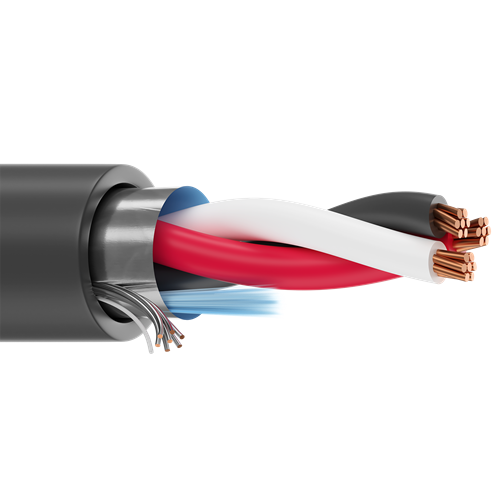

Belden 1036A 18 AWG 1 Triad 7x26 Stranding Bare Copper 300V Instrumentation PLTC Cable

Description:

UL Instrumentation, 1 Triad 18 AWG (7x26) Bare Copper, PVC Insulation E1 Color Code, Overall Beldfoil Shield, Black PVC Outer Jacket, PLTC ITC CMG AWM 2464 SUN RES.

Insulation:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.019 in (0.48 mm)
• Nom. Insulation Diameter: 0.083 in (2.1 mm)

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 20 AWG (7x28) TC - Tinned Copper

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.037 in (0.94 mm)
• Nom. Diameter: 0.272 in (6.91 mm)
• Overall Cable Diameter (Nominal): 0.272 in (6.91 mm)
• Separator: PP - Polypropylene Tape

Standards:

• Operating Temperature: -30°C to +105°C
• Voltage Rating: 300 V (PLTC, CMG, AWM 2464), 150 V (ITC)

Applications:

• Industrial Control, Raceways, Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, ...), low voltage digital control (24v, …), RTD, control circuits, distributed control system (DCS), programmable logic controller (PLC), Solenoids, Valves, actuators, positioners
