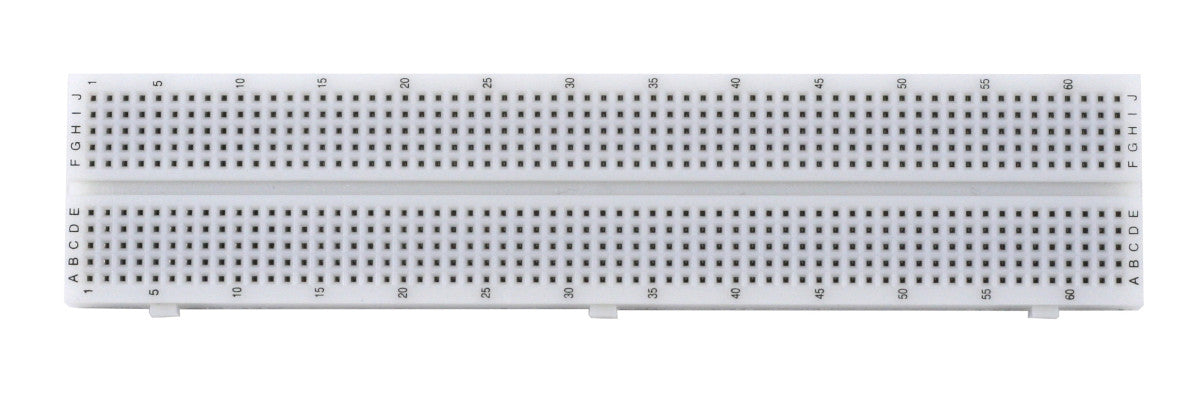

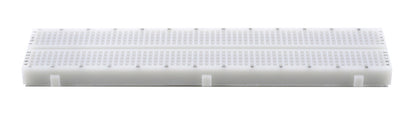

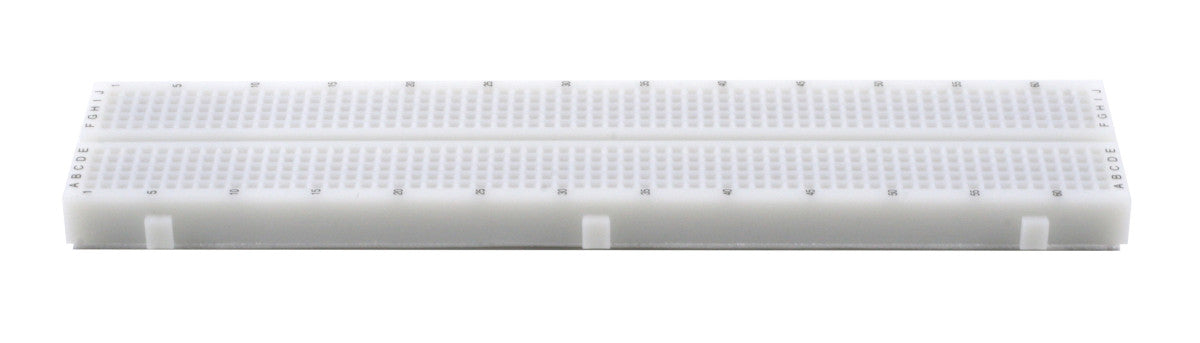

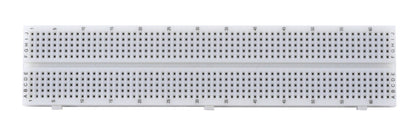

BB630 Solderless Plug-in Breadboard

Description:

BB630 is a solderless plug-in breadboard with 630 connection tie-points (ie wire insertion holes) Solderless breadboards are great for building and testing new circuits because parts can be easily inserted and removed They are completely re-usable The housing is made of white ABS plastic, with a printed legend giving numbers and letters for columns and rows The internal contacts are phosphor bronze with a plated nickel finish.

A peelable adhesive tape backing is provided for attaching it to a surface BPS BreadBoards are Lead-Free and RoHS Compliant Finished projects can be moved to a BR1 or SB830 Solderable PC BreadBoard to make them permanent.

Features and Benefits:

•630 tie-point IC-circuit area..

•White ABS plastic body with black printed legend..

•Contacts are Phosphor Bronze with Plated Nickel Finish, rated for 50,000 insertions..

•Rated at 36 Volts, 2 Amps..

•Insertion Wire Size is 21 to 26 AWG, 0.016 to 0.028 inches diameter (0.4 to 0.7mm diameter).

•Peelable adhesive tape backing provided for attaching to a surface..

Specifications:
