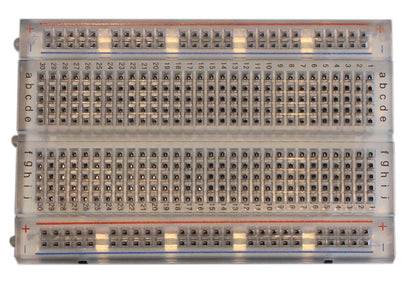

BB400 BreadBoard-400 Solderless Plug-in BreadBoard

Description:

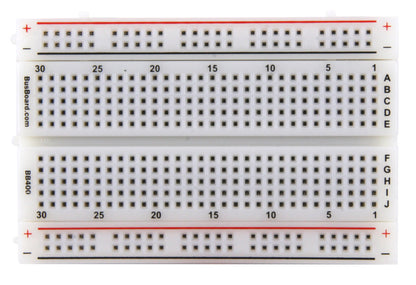

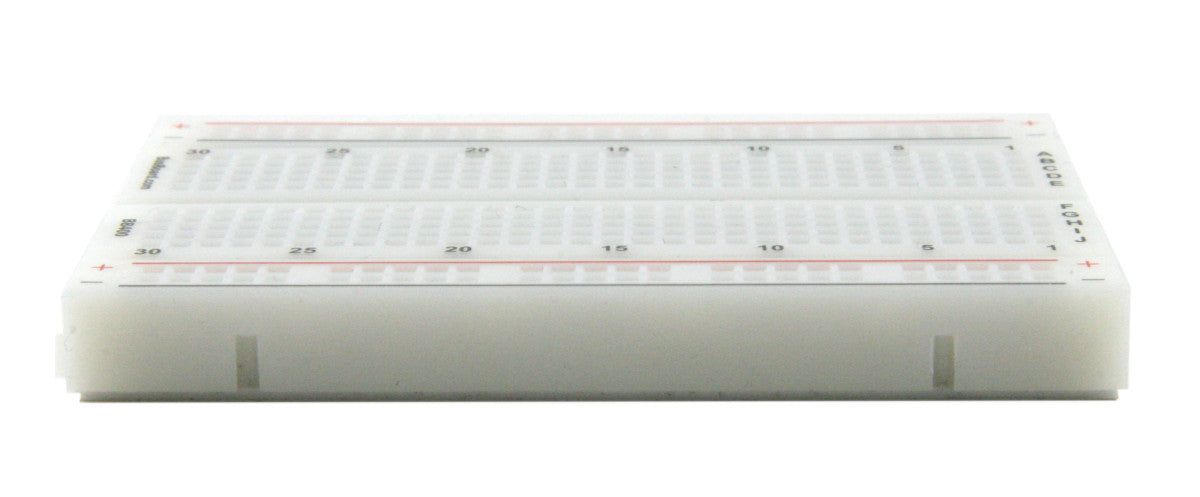

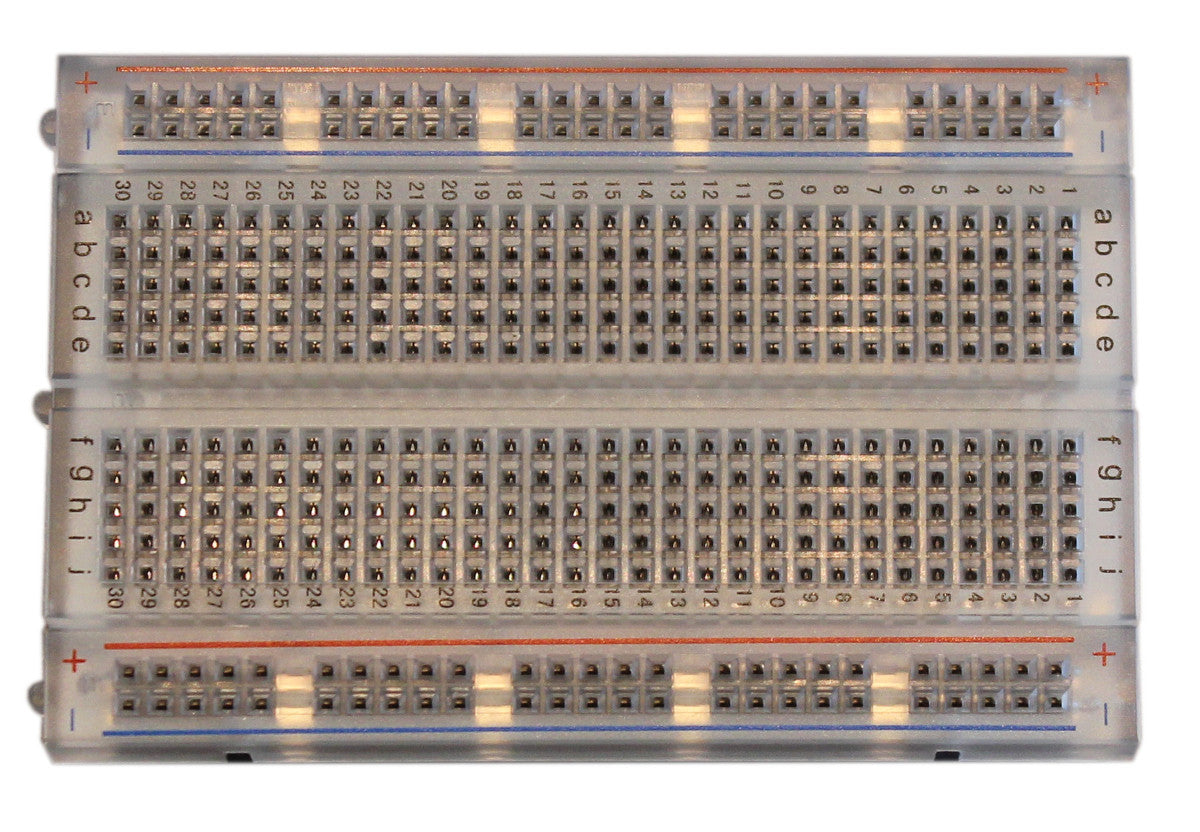

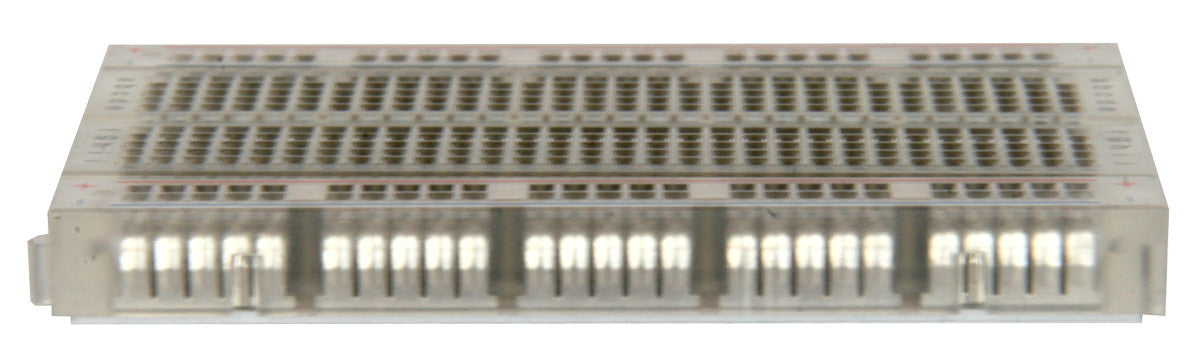

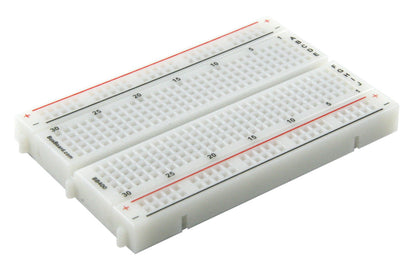

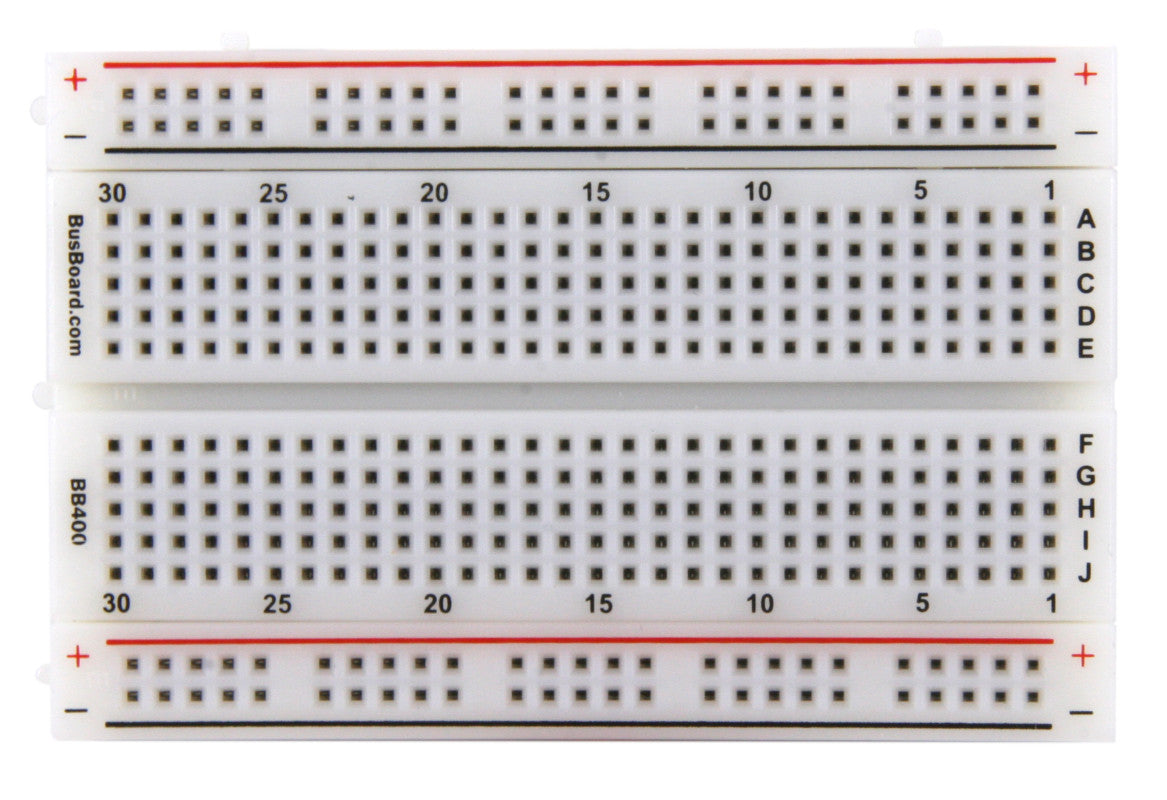

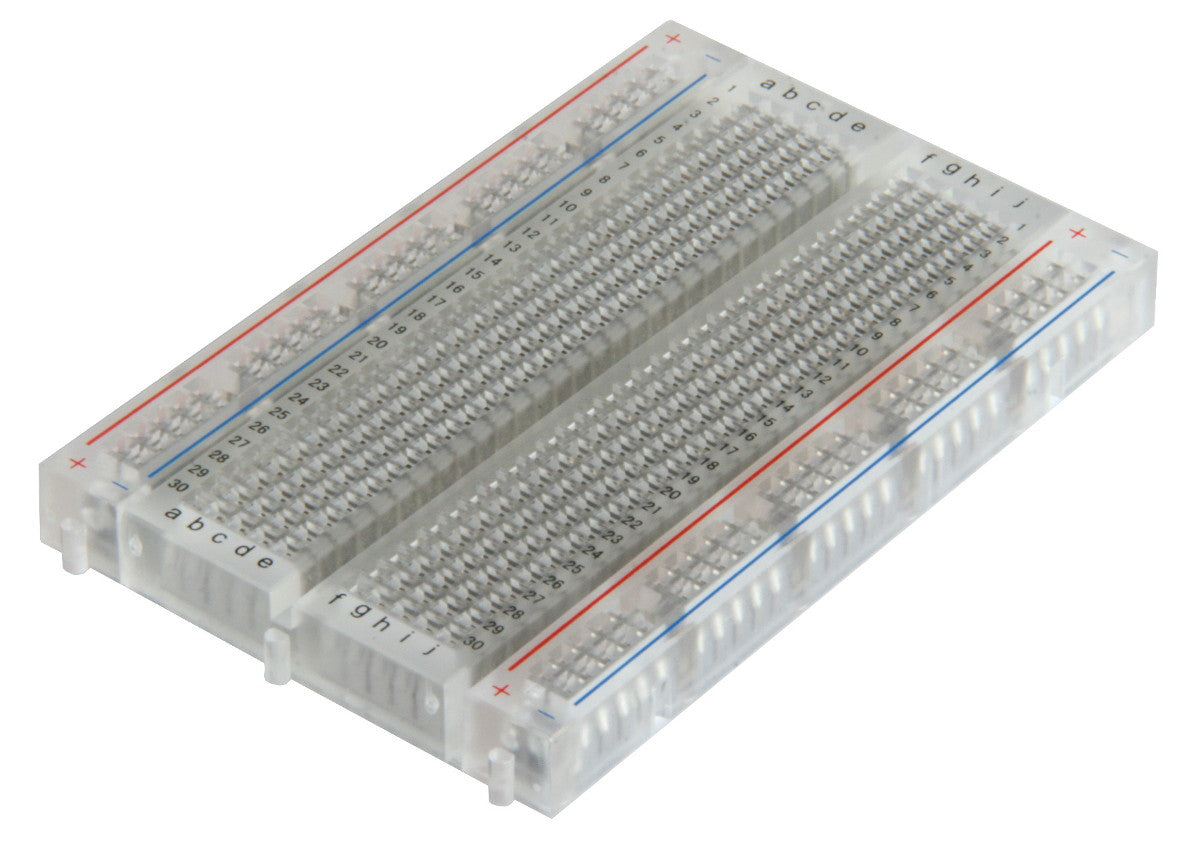

BreadBoard-400 is a solderless (plug-in) breadboard with 400 connection tie-points (ie 400 wire insertion holes) It has 4 power rails Solderless breadboards are great for building and testing new circuits because parts can be easily inserted and removed They are completely re-usable The BB400 has a 300 tie-point IC-circuit area plus four 25 tie-point power rails The housing is made of white ABS plastic, with a printed legend giving numbers and letters for columns and rows.

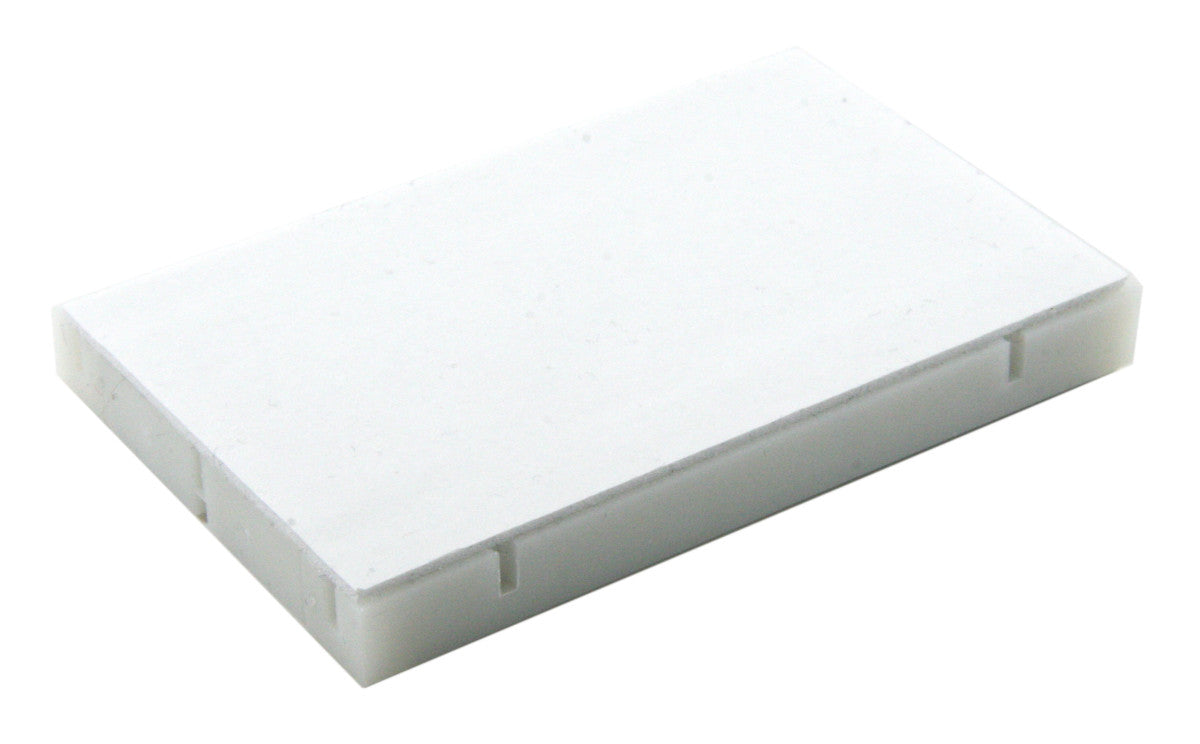

The internal contacts are phosphor bronze with a plated nickel finish A peelable adhesive tape backing is provided for attaching it to a surface BPS BreadBoards are Lead-Free and RoHS Compliant Finished projects can be moved to a SB400 or SB404 Solderable PC BreadBoard to make them permanent.

Features and Benefits:

•400 tie points total: 300 tie-point IC-circuit area plus two 50 tie-point distribution strips providing 4 power rails..

•ABS plastic body with black printed legend. Color legend on distribution strips..

•Contacts are Phosphor Bronze with Plated Nickel Finish, rated for 50,000 insertions..

•Rated at 36 Volts, 2 Amps..

•Insertion Wire Size is 21 to 26 AWG, 0.016 to 0.028 inches diameter (0.4 to 0.7mm diameter).

•Peelable adhesive tape backing provided for attaching to a surface..
