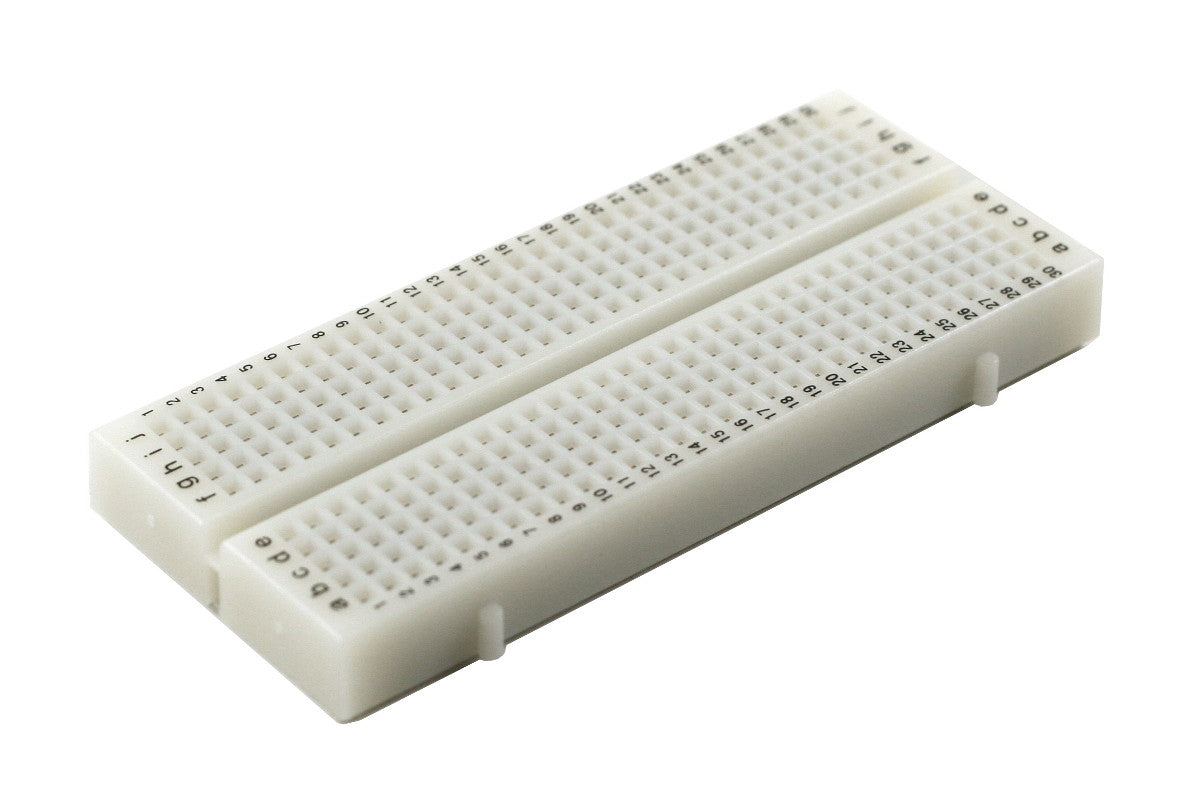

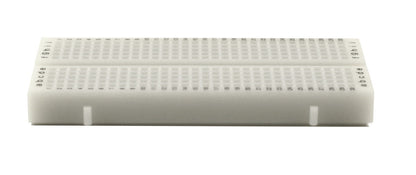

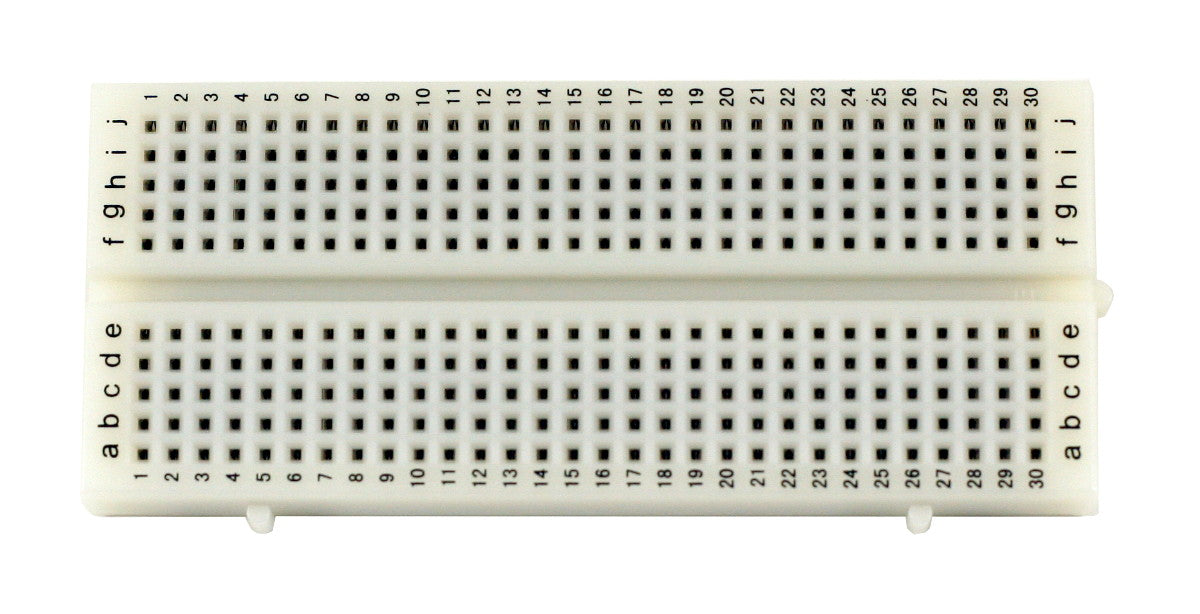

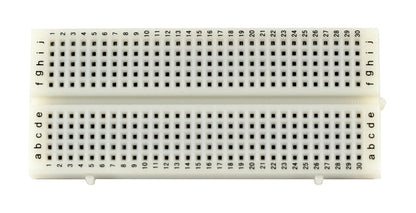

BB300 BreadBoard-300

Description:

BreadBoard-300 is a solderless (plug-in) breadboard with 300 connection tie-points (ie 300 wire insertion holes) Solderless breadboards are great for building and testing new circuits because parts can be easily inserted and removed They are completely re-usable The BB300 has a 300 tie-point IC-circuit area The housing is made of white ABS plastic, with a printed legend giving numbers and letters for columns and rows.

The internal contacts are phosphor bronze with a plated nickel finish A peelable adhesive tape backing is provided for attaching it to a surface BPS BreadBoards are Lead-Free and RoHS Compliant Finished projects can be moved to a SB300 Solderable PC BreadBoard to make them permanent.

Features and Benefits:

•300 tie-point IC-circuit area..

•White ABS plastic body with black printed legend..

•Contacts are Phosphor Bronze with Plated Nickel Finish, rated for 50,000 insertions..

•Rated at 36 Volts, 2 Amps..

•Insertion Wire Size is 21 to 26 AWG, 0.016 to 0.028 inches diameter (0.4 to 0.7mm diameter).

•Peelable adhesive tape backing provided for attaching to a surface..

•Size: 3.3 x 1.4 x 0.3in (84 x 35.5 x 8.5mm)..

Specifications:
