BB1660 Solderless Plug-in BreadBoard

Description:

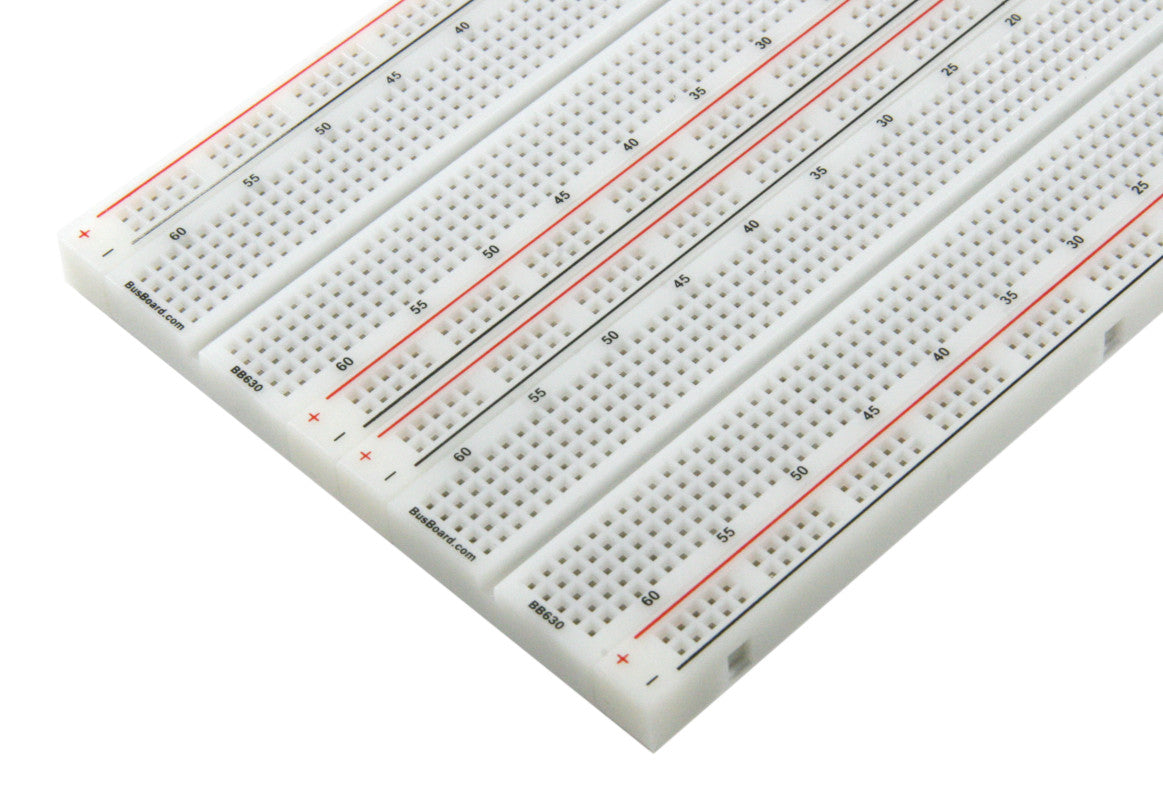

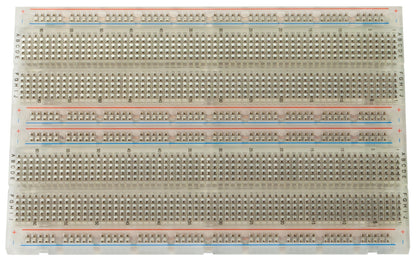

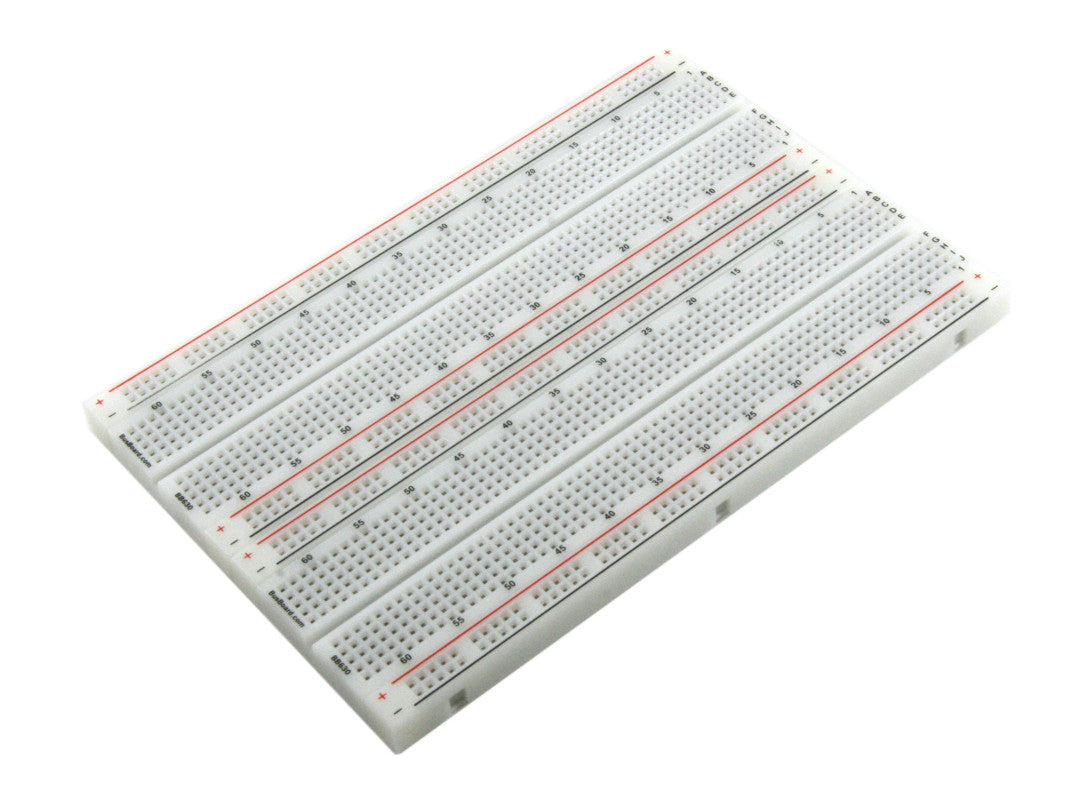

BreadBoard-1660 is a solderless (plug-in) breadboard with 1660 connection tie-points (ie 1660 wire insertion holes) It has 8 power rails Solderless breadboards are great for building and testing new circuits because parts can be easily inserted and removed They are completely re-usable The BB1660 has two 630 tie-point IC-circuit areas plus eight 50 tie-point power rails The housing is made of white ABS plastic, with a printed legend giving numbers and letters for columns and rows.

The internal contacts are phosphor bronze with a plated nickel finish A peelable adhesive tape backing is provided for attaching it to a surface and optional metal back plates are provided BPS BreadBoards are Lead-Free and RoHS Compliant Finished projects can be moved to an SB1660 Solderable PC BreadBoard to make them permanent.

Features and Benefits:

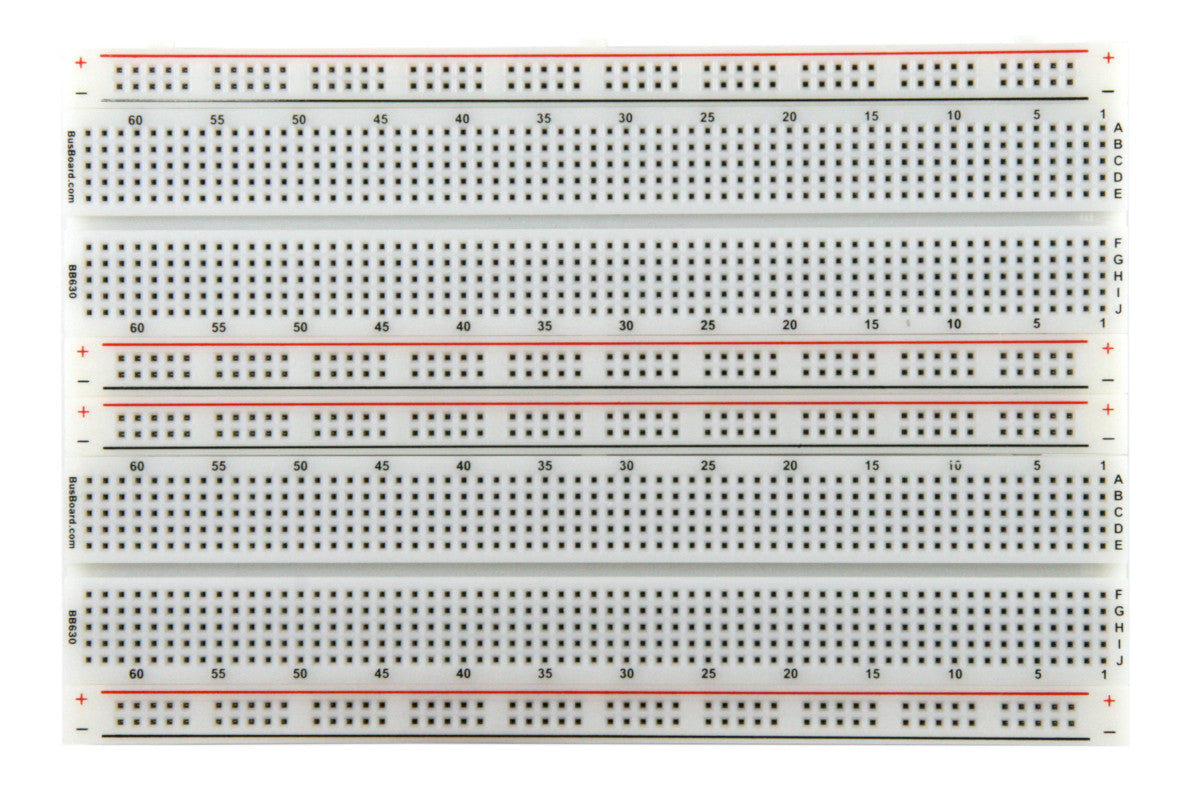

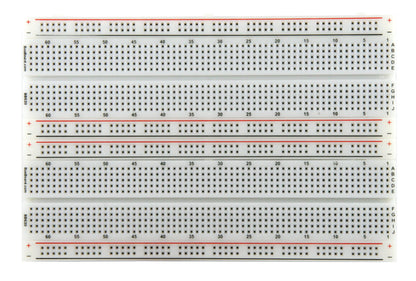

•1660 tie points total: 1260 tie-point IC-circuit area plus four 100 tie-point distribution strips providing 8 power rails..

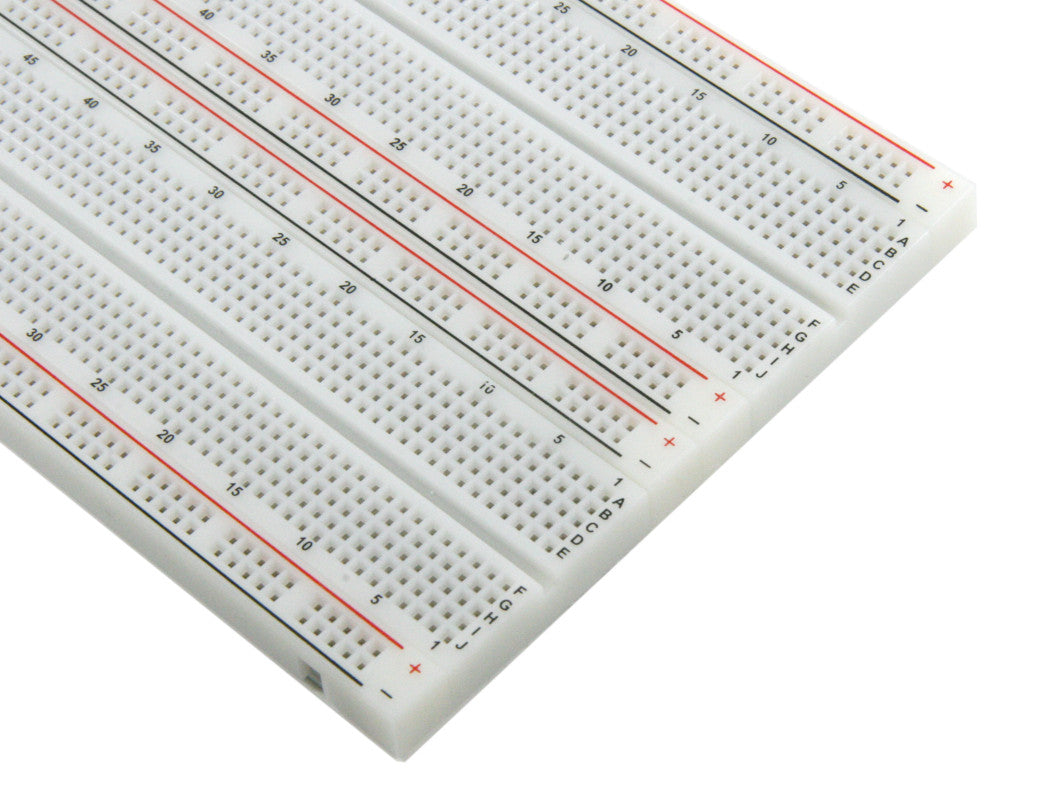

•ABS plastic body with black printed legend. Color legend on distribution strips..

•Contacts are Phosphor Bronze with Plated Nickel Finish, rated for 50,000 insertions..

•Rated at 36 Volts, 2 Amps..

•Insertion Wire Size is 21 to 26 AWG, 0.016 to 0.028 inches diameter (0.4 to 0.7mm diameter)..

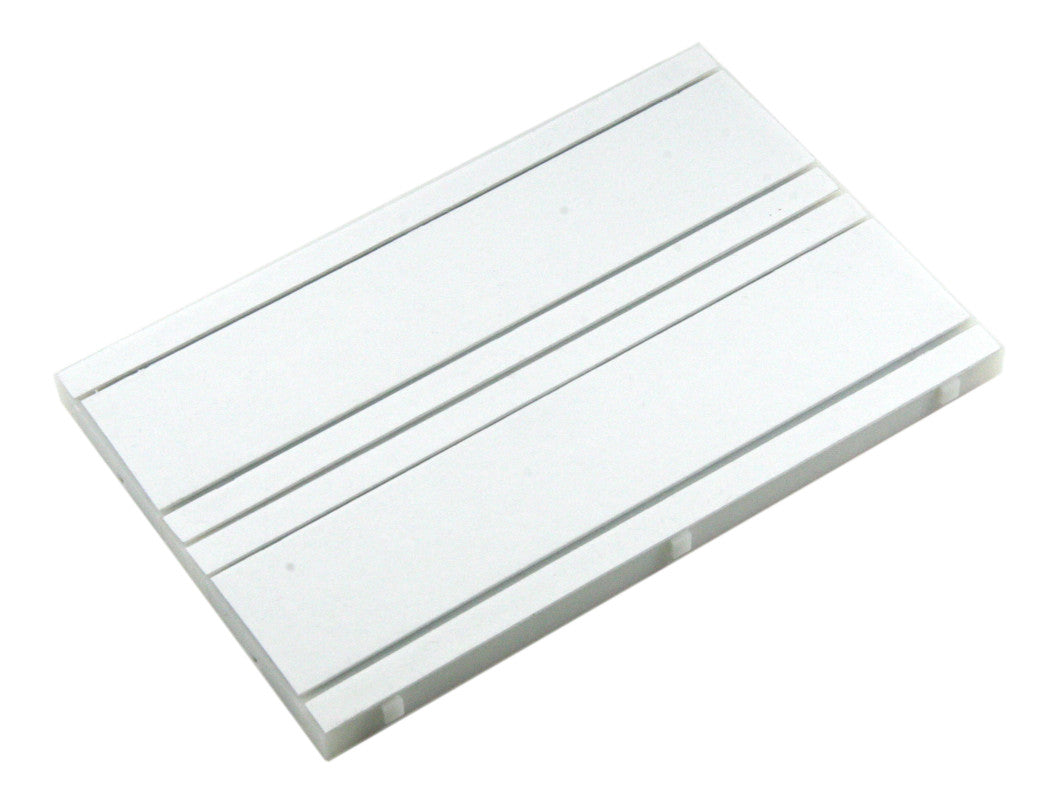

•Peelable adhesive tape backing provided for attaching to a surface. Metal back plates provided..
