BB1460 Modular Solderless Plug-in BreadBoard

Description:

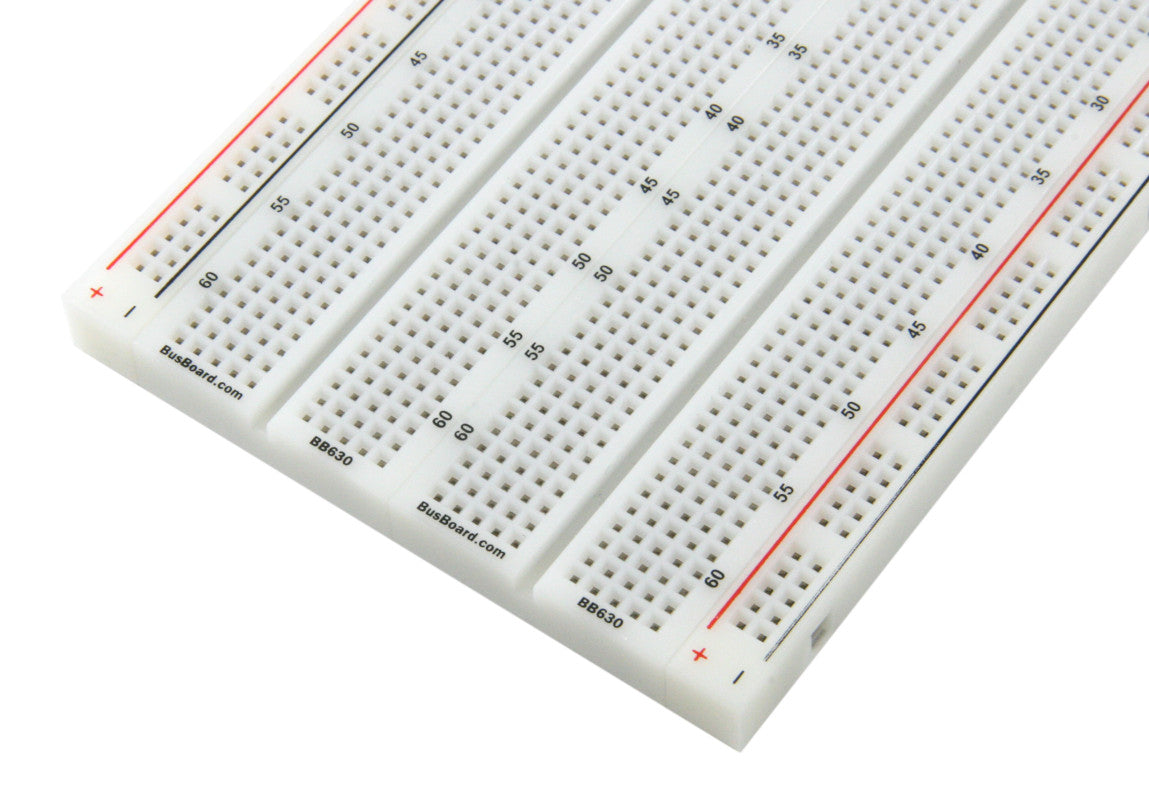

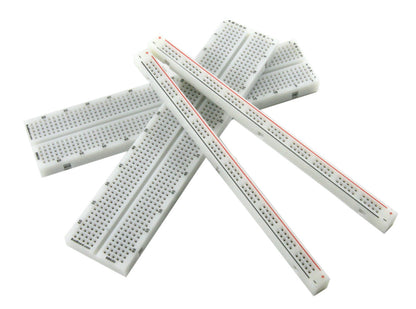

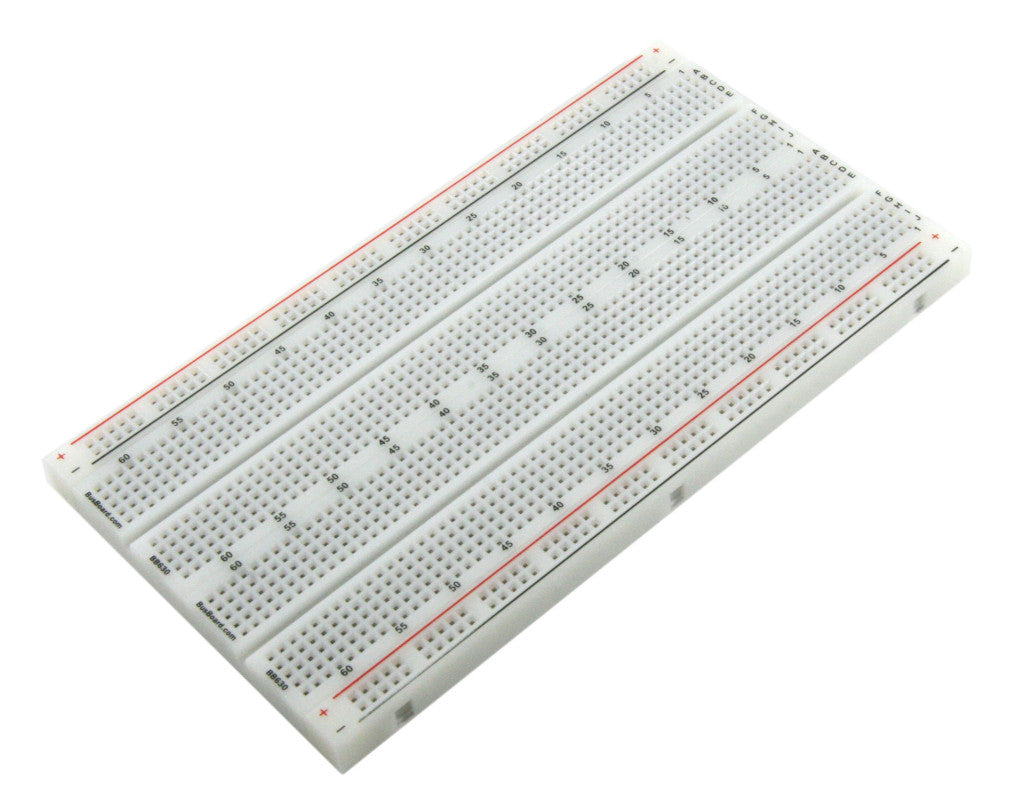

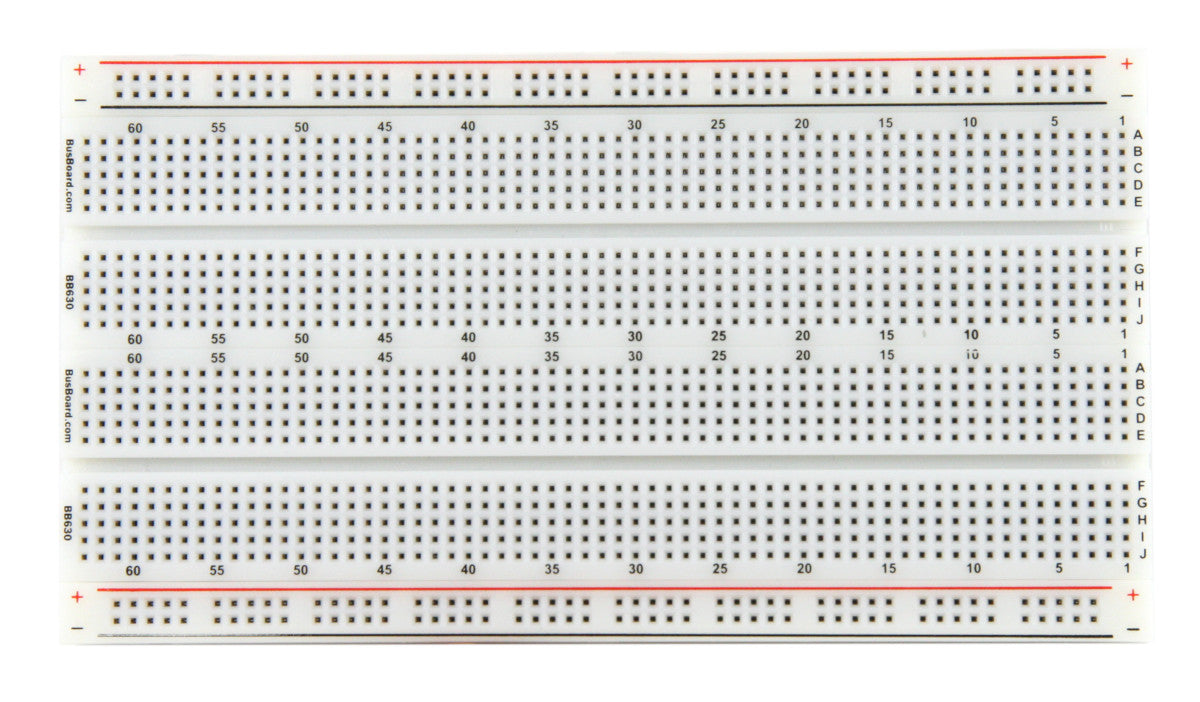

BB1460 is a modular solderless (plug-in) breadboard with 1460 connection tie-points (ie 1460 wire insertion holes) It has 4 power rails Solderless breadboards are great for building and testing new circuits because parts can be easily inserted and removed They are completely re-usable The BB1460 has two 630 tie-point IC-circuit areas plus four 100 tie-point power rails The housing is made of white ABS plastic, with a printed legend giving numbers and letters for columns and rows.

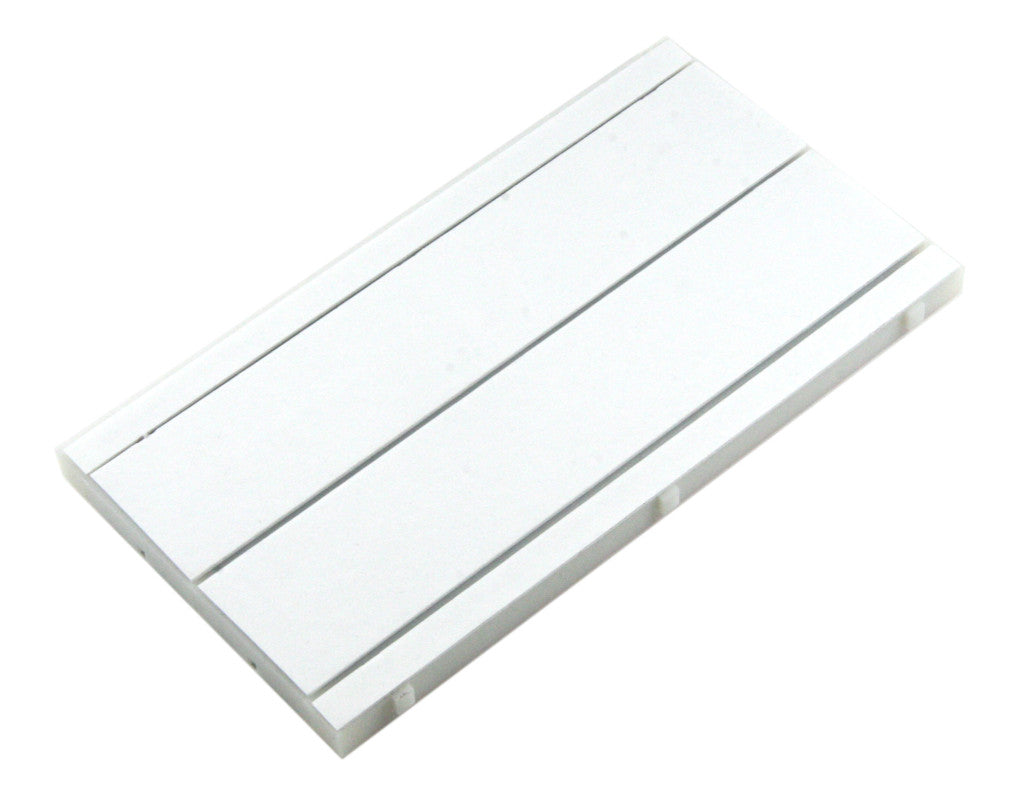

The internal contacts are phosphor bronze with a plated nickel finish A peelable adhesive tape backing is provided for attaching it to a surface BPS BreadBoards are Lead-Free and RoHS Compliant.

Features and Benefits:

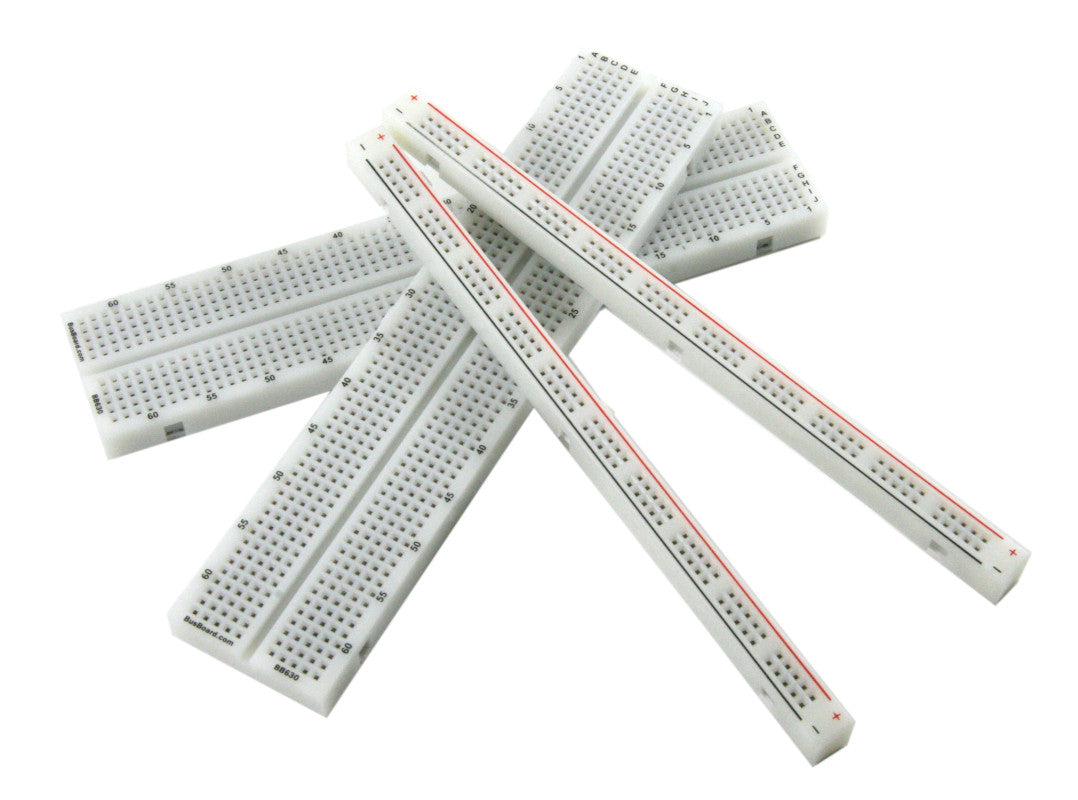

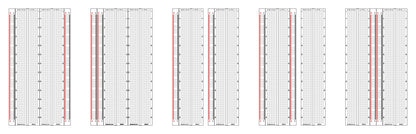

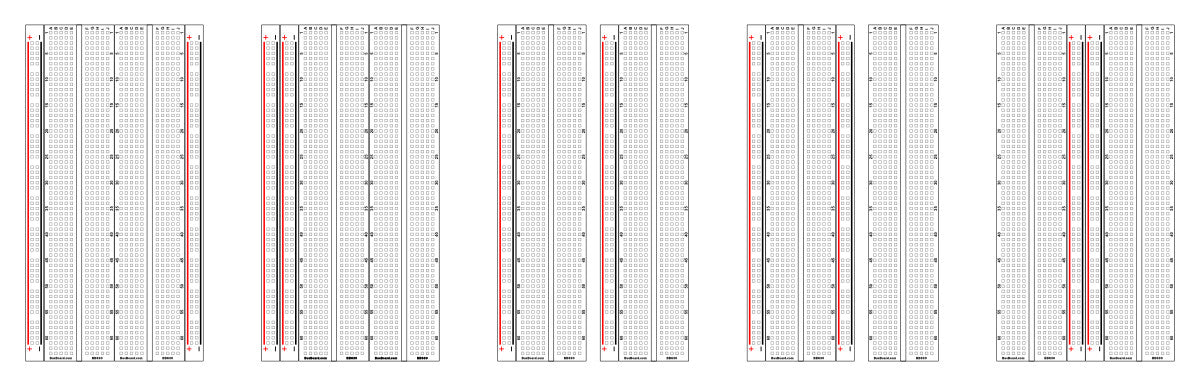

•Configurable sections allow for different arrangements.

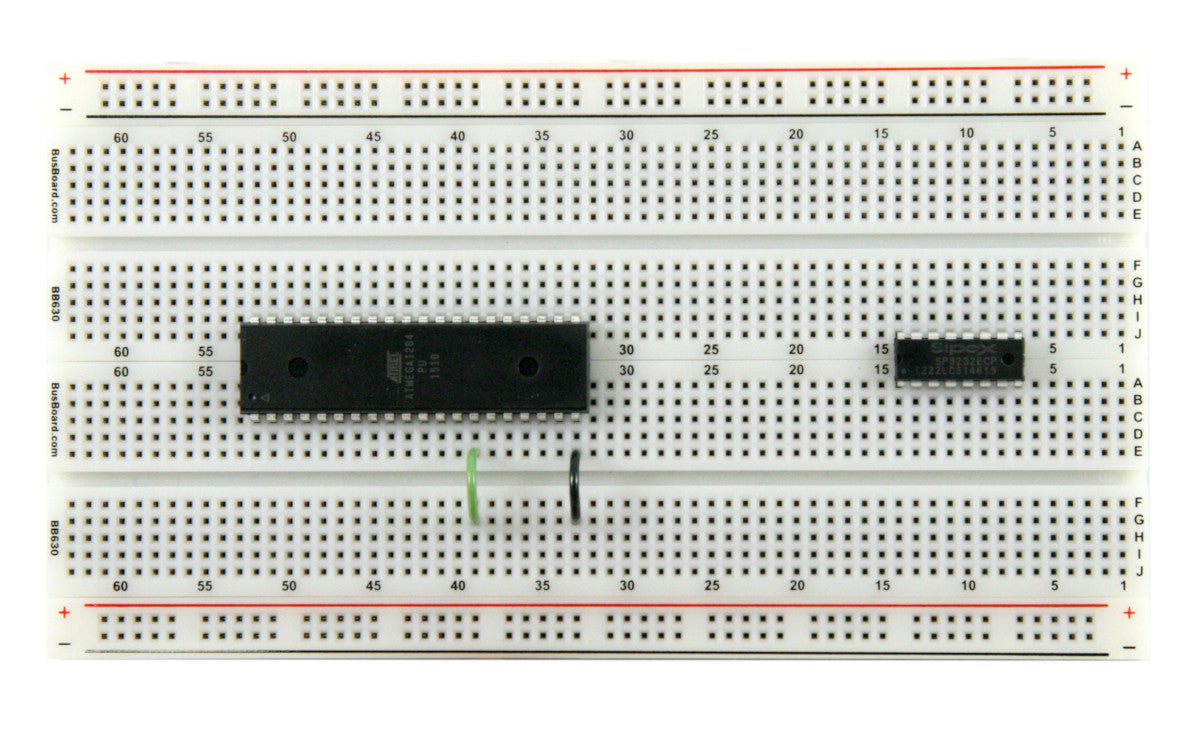

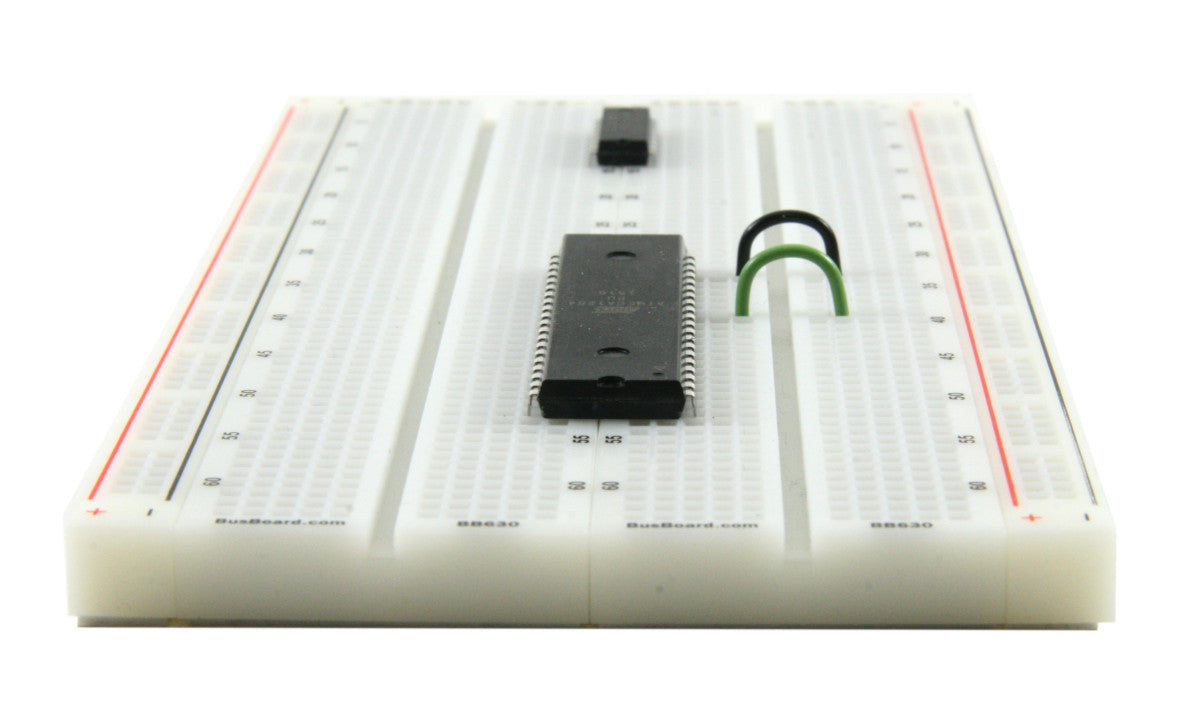

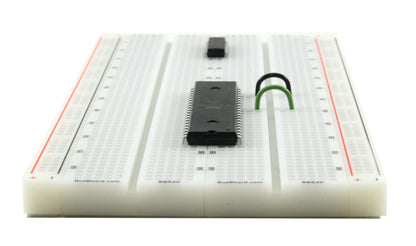

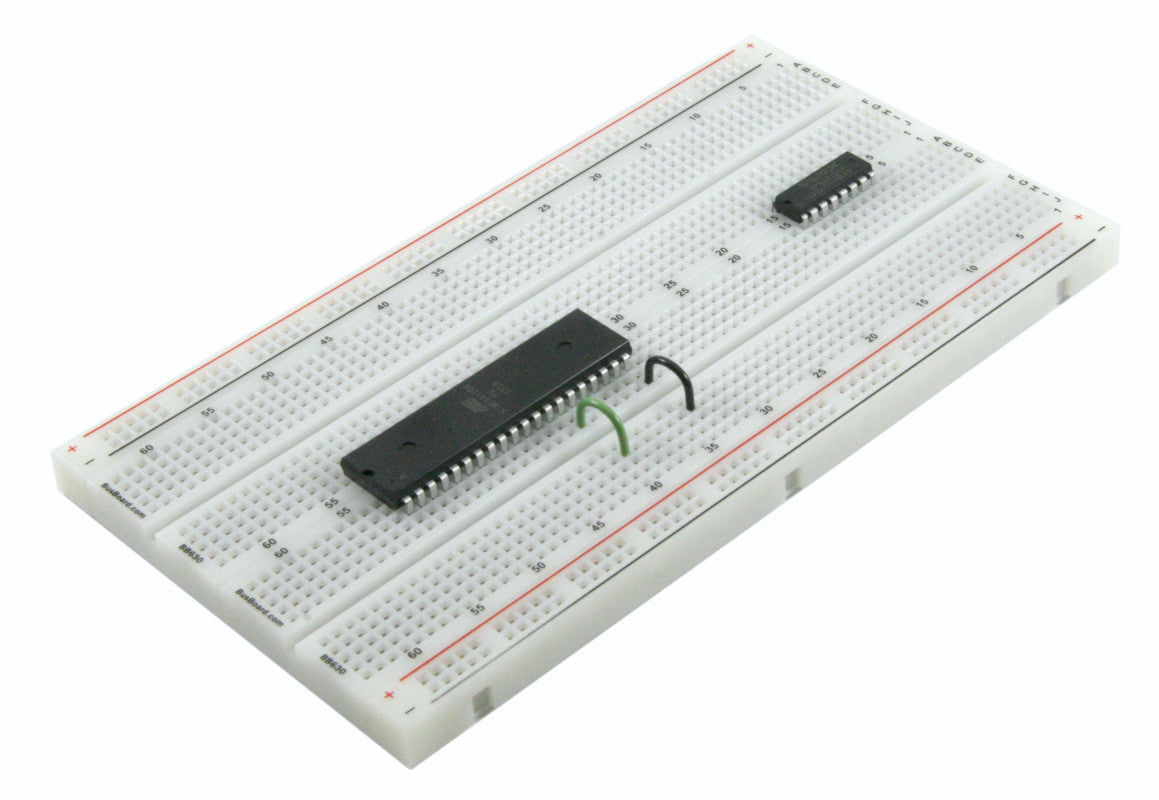

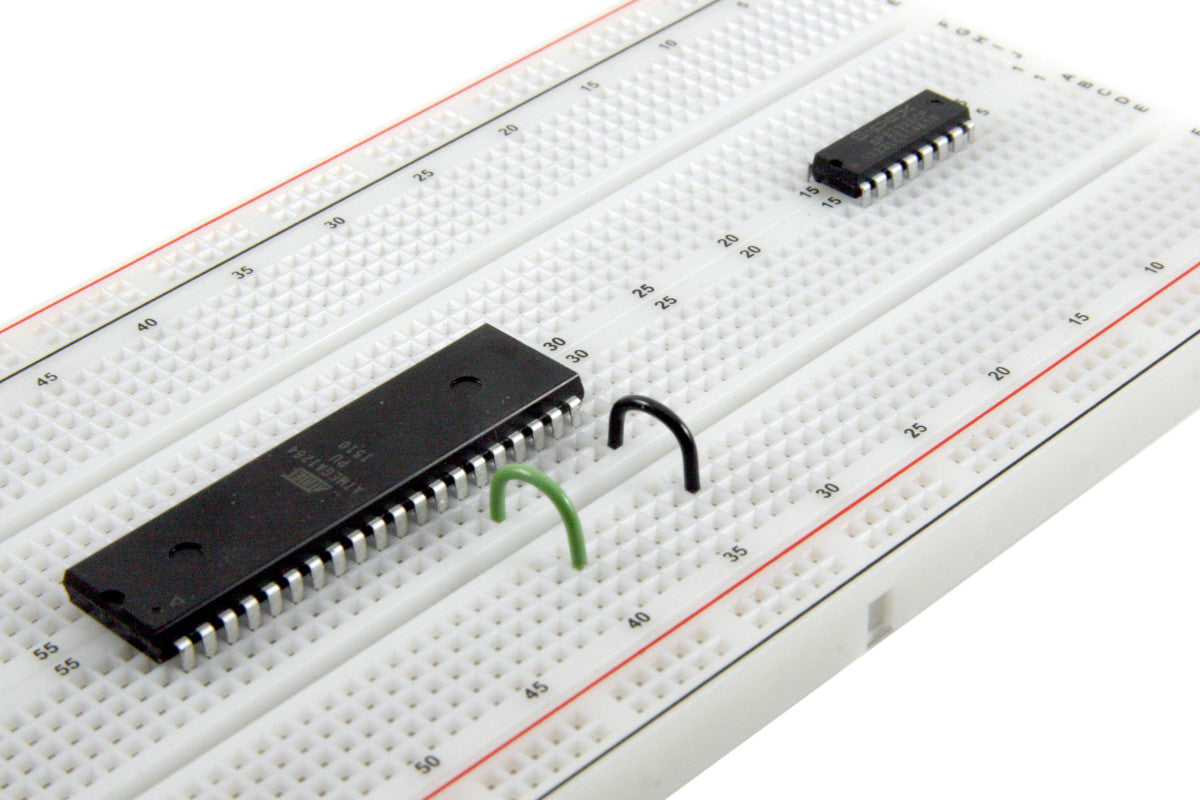

•DIP integrated circuits can be inserted along the centerline.

•High-quality contacts using a beryllium-copper contact alloy.

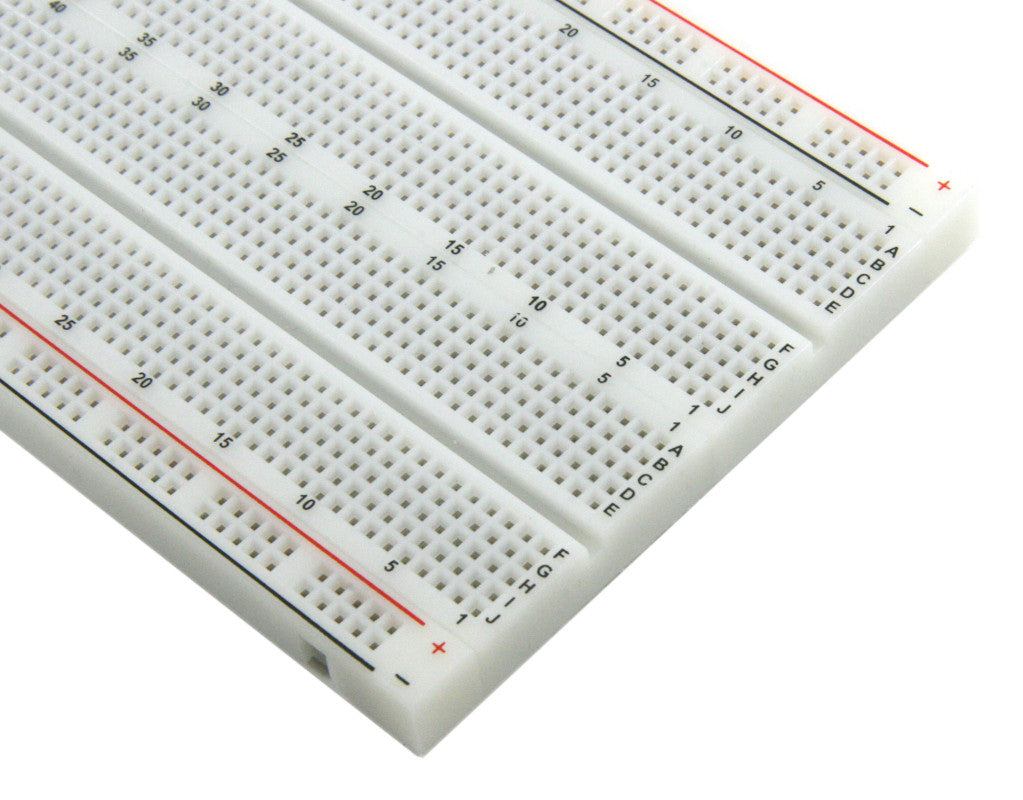

•Consistent grid reference for easy reading of hole legends.

Specifications:
