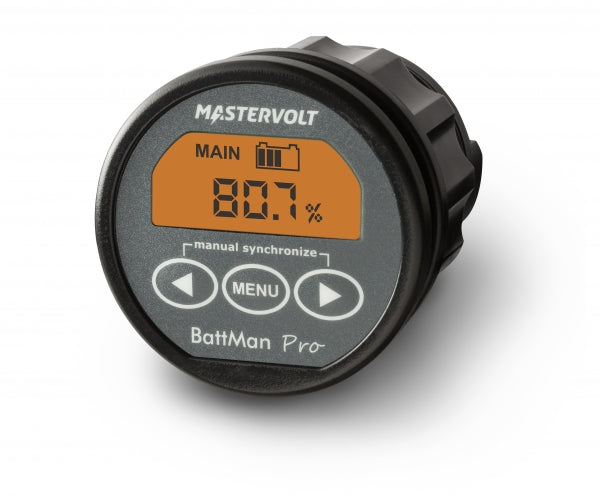

BattMan Pro Battery Monitor

BattMan Pro Battery Monitor

SKU: 70405070   Download PDF

Qty:
Now $34,378.00   Web pricing policy
BEFORE   Now $34,378.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information
Resources

Description:

The BattMan Pro is a battery monitor designed for 12/24 V DC systems, featuring a large splash-proof display (IP65) and a power bar It provides essential information about the battery bank status under various conditions, alerts the user when the battery bank is low, and displays the remaining charging time Additionally, it keeps track of special battery status events, ensuring effective monitoring of battery health and performance.

Features and Benefits:

    •Splash-proof display (IP65).

    •Displays voltage, current, amp-hours, time remaining, and battery capacity.

    •Stores special battery status events.

    •Warns when battery bank is empty.

    •Can monitor up to 9999 Ah capacity.

Specifications:

 Number of battery outlets: 2; service (fully), starter (voltage)
 Display/read-out: voltage, current, amp-hours, time remaining, battery capacity in %, special battery status events
 Languages on display: universal
 Built-in depth: 72.5 mm
 Dimensions: Ø 64 mm, depth 79 mm
 Dimensions shunt, hxwxd: 87 x 45 x 35 mm
 Max. Ah capacity: 9999 Ah
 Supply voltage: 9-35 V
 Voltage range: 0-35 V
 Current consumption (backlight off): 8 mA/12 V, 6 mA/24 V
 Current consumption (backlight on): 30 mA/12 V, 18 mA/24 V
 Voltage resolution: 0.01 V
 Voltage accuracy: ± 0.3%
 Shunt specification: 500 A / 50 mV (service set)
 Current measurement range: 0-500 A
 Current accuracy: ± 0.4%
 Battery alarm contact: yes, potential free
 Remaining time indication: yes
 Historical data: yes
 MasterBus compatible: no
 Connection cable (6-wire) necessary: yes
 Modular cable necessary: no
