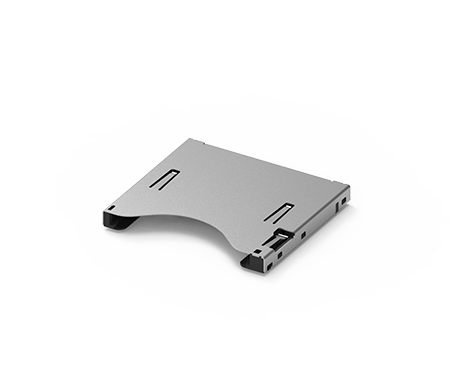

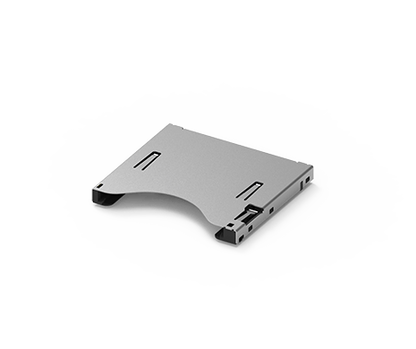

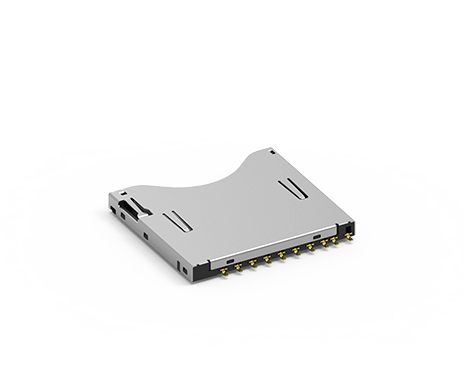

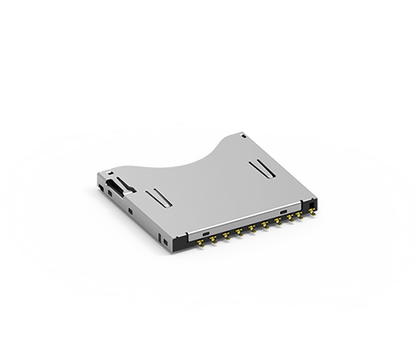

ATTEND SD Card Socket - Push-Push Type - Top Mount - SMT

ATTEND SD Card Socket - Push-Push Type - Top Mount - SMT

SKU: 104D-TCA0-R06 Download PDF

Now $63.00
BEFORE   Now $63.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

ATTEND's SD memory full size cards have nine pins in one row, and microSD memory cards have eight The pins are used for default speed, high-speed, and UHS-I bus interface modes The 104 series SD and the 112 series microSD sockets support data transfer speeds of up to 104 Mbyte/s and SD, SDHC, SDXC, and SDUC, the four card capacity types They are universally used in industrial cameras, embedded systems, IIoT devices, and various other products.

These sockets include various types such as push-push, push-pull, reverse, and flip-top types, ensuring known compatibility and reliability.

Features and Benefits:

    •Supports data transfer speeds of up to 104 Mbyte/s.

    •Compatible with SD, SDHC, SDXC, and SDUC card capacities.

    •Available with write protection switch option.

    •Available with card detection switch option.

    •Complies with SDA standards.

    •Industrial cameras.

    •Embedded systems.

    •IIoT.

    •Automotive infotainment.

    •Action cameras.

Specifications:

 Contact Material Phosphor Bronze Alloy (C5210R–EH)
 Operating Temperature -25℃ to +90℃
 Storage Temperature -40℃ to +90℃
 Ambient Humidity 90%～95% R.H.
 Slider Material LCP+35%GF, Color Black
 Insulator Material Plastic Body, LCP+35%GF, Color Black
 Shell Material SUS304R-3/4 H
 Latch Material SUS304R-3/4 H
 Spring Material Piano Wire
 Drag Link Material SUS304
 Contact Area Plating Gold 10 micro inches (Min.)
 Solder Area Plating Gold flash
