ATL5 - Back Probe Test Lead Kit

ATL5 - Back Probe Test Lead Kit

SKU: ATLBPK Download PDF

Now $36.95
BEFORE   Now $36.95
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

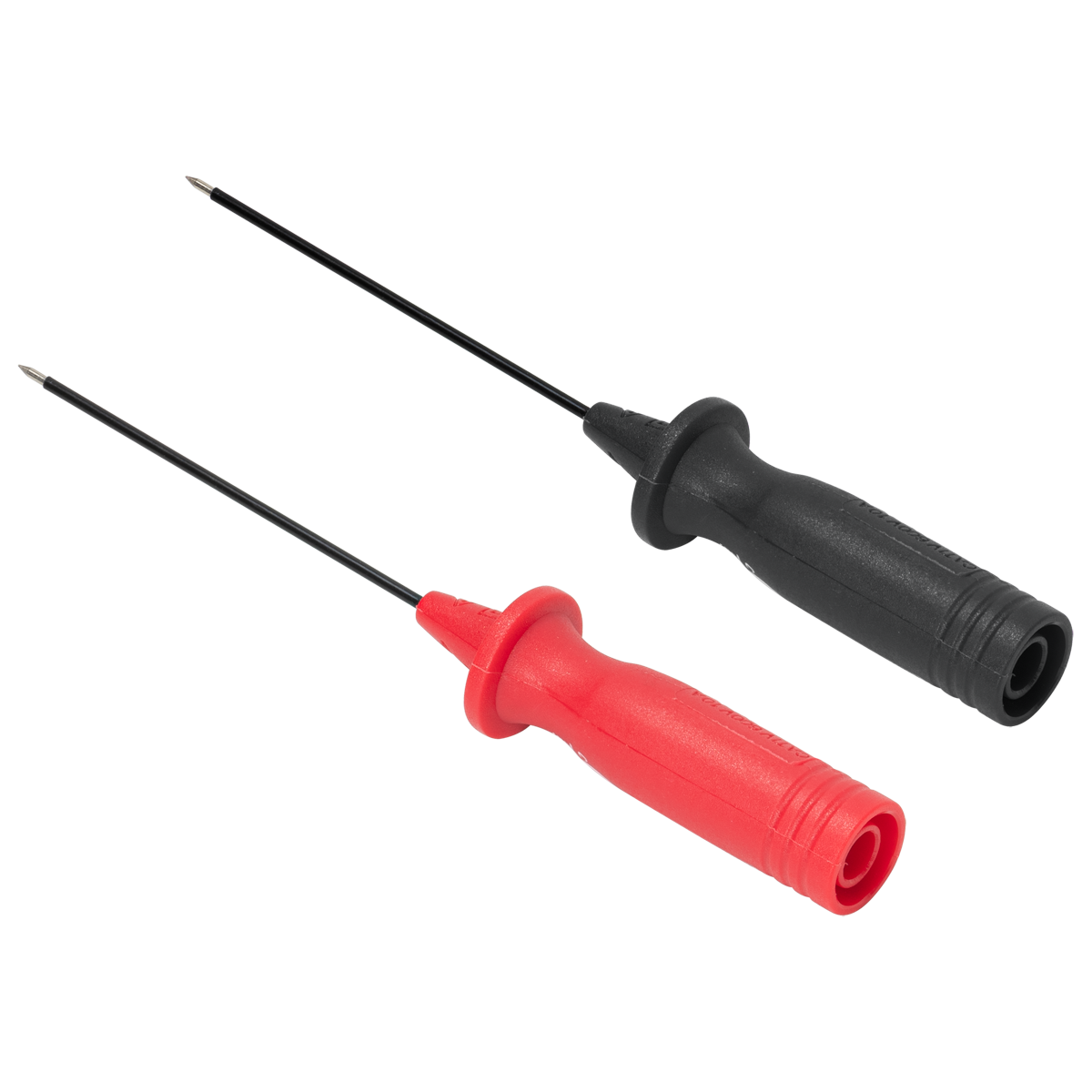

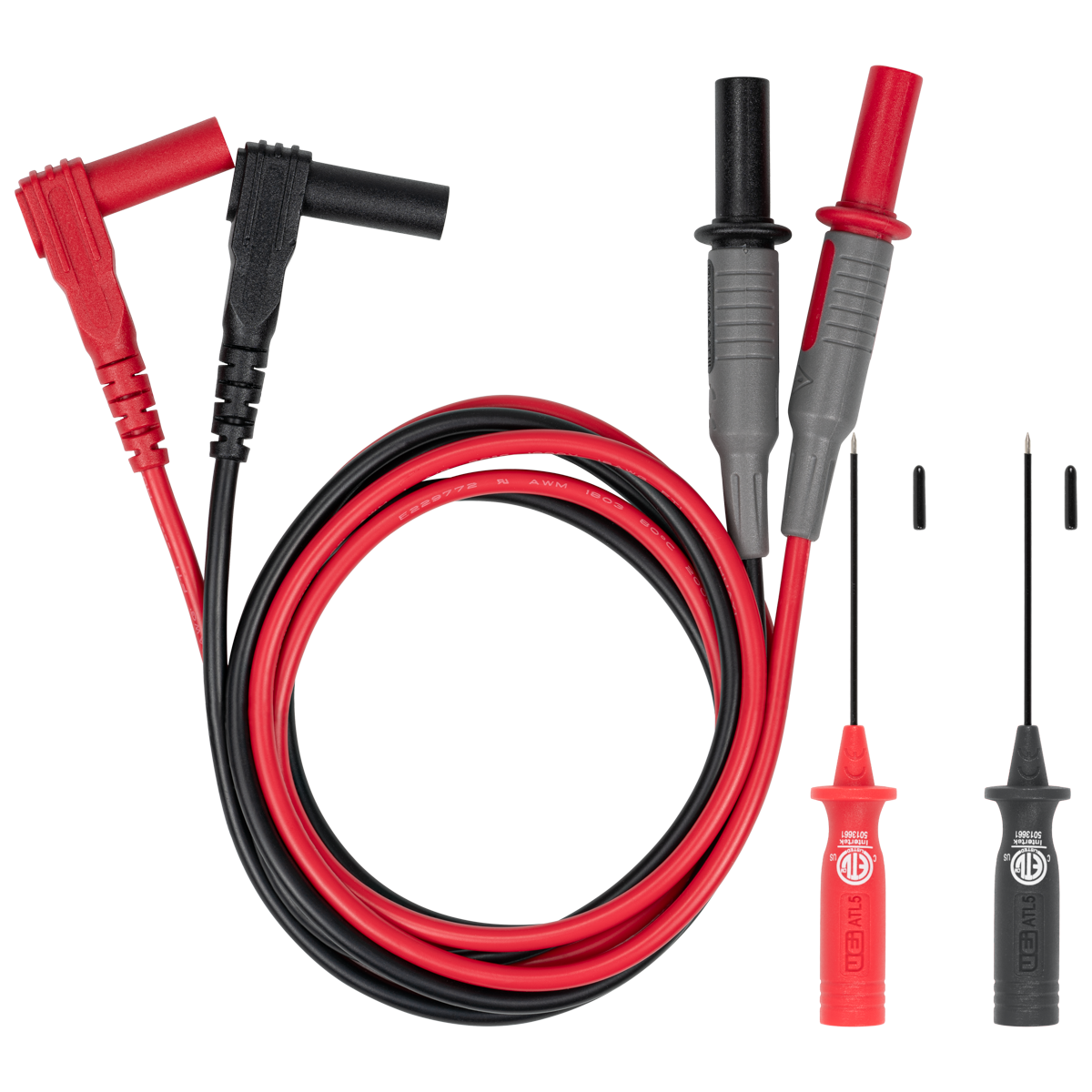

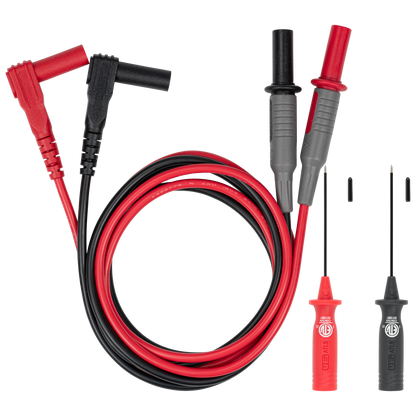

The UEi ATLBPK features our modular back probe set (ATL5) along with our modular test lead set (ATLTX) The modular test lead set features a straight to right-angle connection, standard insulation, and an overall length of 40 in The ATL5 back probe set features color coded positive / negative probes and tips with a diameter of 125mm and a length of 48mm Also included are protective caps to keep the probe tips sharp during storage.

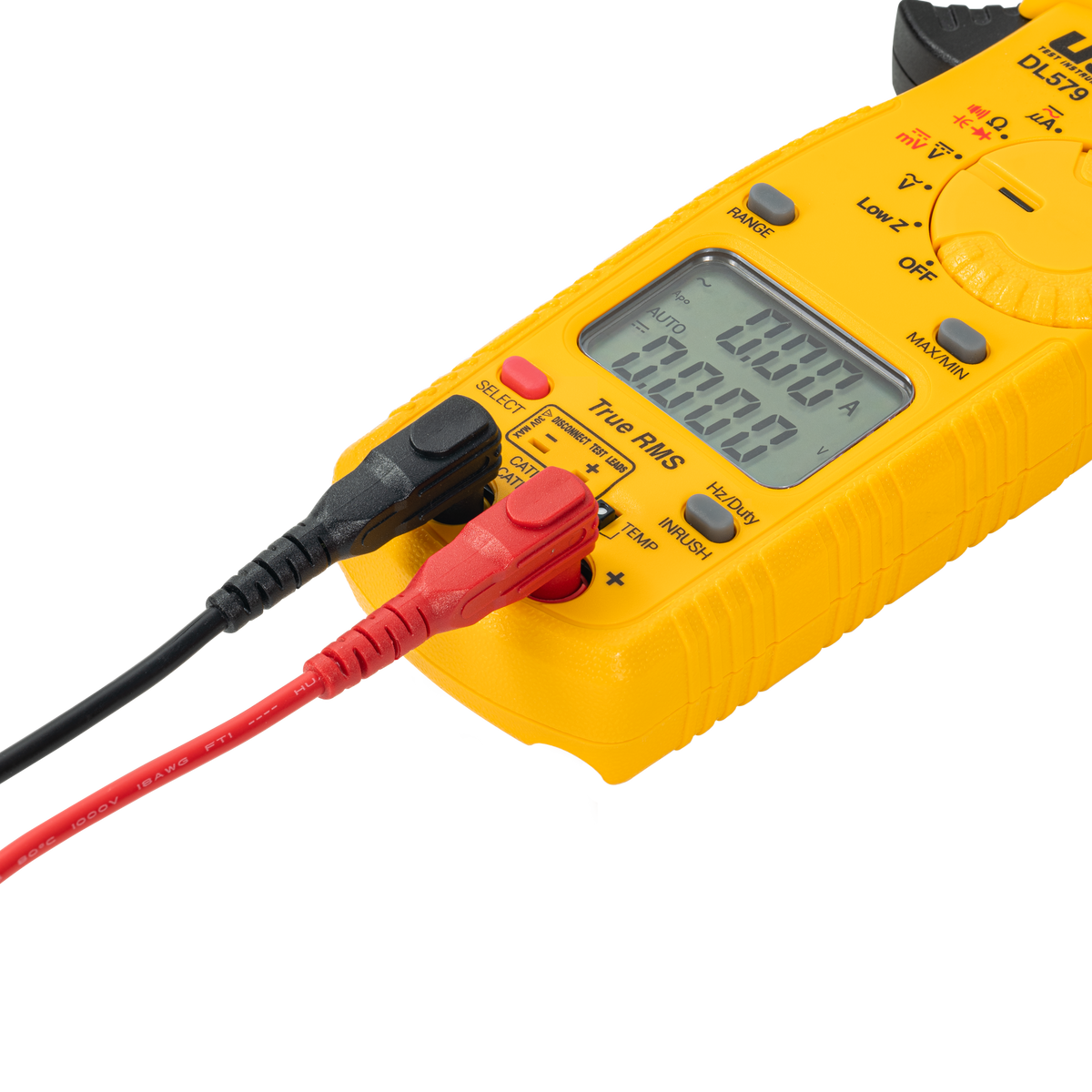

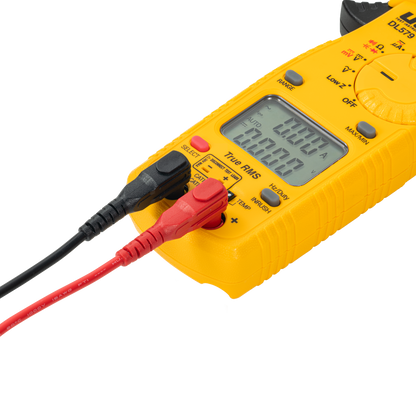

The ATLTX uses 4mm input jacks with extra-long shrouds The lead ends are straight and right-angle shrouded male banana clips with a shroud length of 21mm They work with the following UEi products: DL369, DL379B, DL389B, DL569, DL579, DM505, DM515, DM525, IRT803, IRT807.

Features and Benefits:

    •Safety ratings: ATLTX – CAT III 1000V 10A, ATL5 - CAT IV 600V 10A.

    •Modular test lead set with straight to right-angle connection.

    •Overall length of test lead set is 40 in..

    •Back probe set features color coded positive / negative probes.

    •Tips with a diameter of 1.25mm and a length of 48mm.

    •Includes protective caps for storage.

    •ATLTX uses 4mm input jacks with extra-long shrouds.

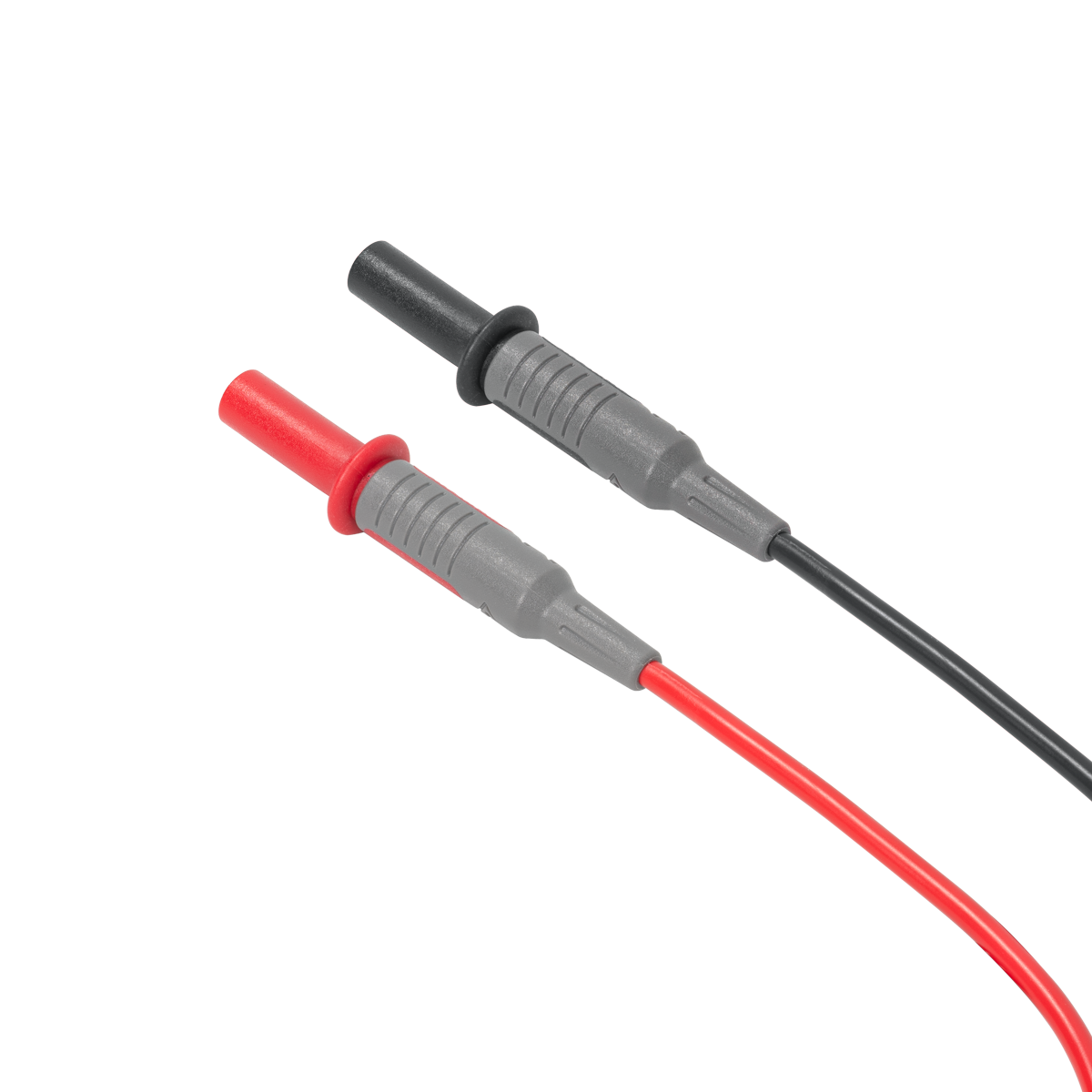

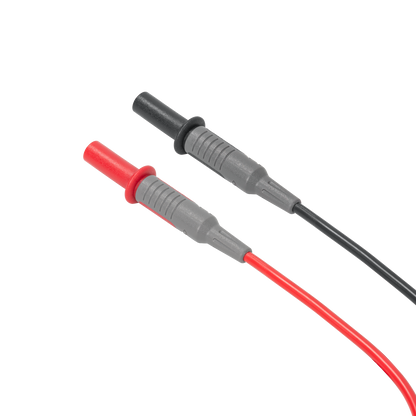

    •Lead ends are straight and right-angle shrouded male banana clips with a shroud length of 21mm.

Specifications:

 Safety ratings (ATLTX) CAT III 1000V 10A
 Safety ratings (ATL5) CAT IV 600V 10A
 Total length of modular lead set 40 in.
 Probe tip diameter 1.25mm
 Probe tip length 48mm
 Lead clip shroud length 21mm
