ATEX Certified Humidity and Temperature Duct Transmitter

ATEX Certified Humidity and Temperature Duct Transmitter

SKU: T3113EX Download PDF

Now $100.00
BEFORE   Now $100.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

This intrinsically safe humidity and temperature duct transmitter is designed for use in potentially explosive atmospheres It is ATEX certified and features a duct mount configuration The device utilizes relative humidity and temperature sensors with a stem length of 150mm It converts the measured values into various interpretations of humidity, including dew point temperature, absolute humidity, specific humidity, mixing ratio, and specific enthalpy.

With an operating range for temperature from -30 to +125 °C and humidity from 0 to 100 % RH, this transmitter ensures accurate monitoring under challenging conditions.

Features and Benefits:

    •ATEX certified for potentially explosive environments.

    •4-20 mA output with galvanic isolation.

    •User-adjustable output configuration from PC.

    •Measures dew point, absolute humidity, specific humidity, mixing ratio, and specific enthalpy.

    •IP65 protection for electronics and IP40 for sensors.

    •Humidity and temperature monitoring in ducted applications within explosive atmospheres.

Specifications:

 Temperature Sensor Measuring Range: -30 to +125 °C
 Temperature Sensor Accuracy: ±0.4 °C
 Temperature Sensor Resolution: 0.1 °C
 Humidity Sensor Measuring Range: 0 to 100 % RH
 Humidity Sensor Accuracy: ±2.5 % RH from 5 to 95 % at 23 °C
 Humidity Sensor Resolution: 0.1% RH
 Dew Point Measuring Range: -60 to +80 °C
 Dew Point Accuracy: ±1.5 °C at ambient temperature T <25 °C and RH >30 %
 Dew Point Resolution: 0.1 °C

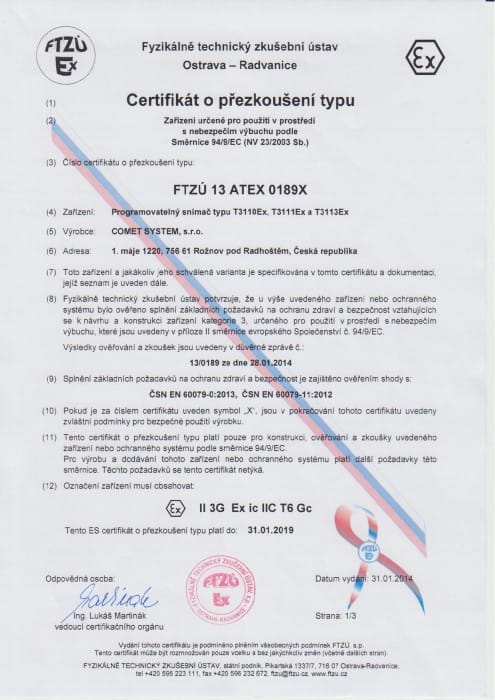

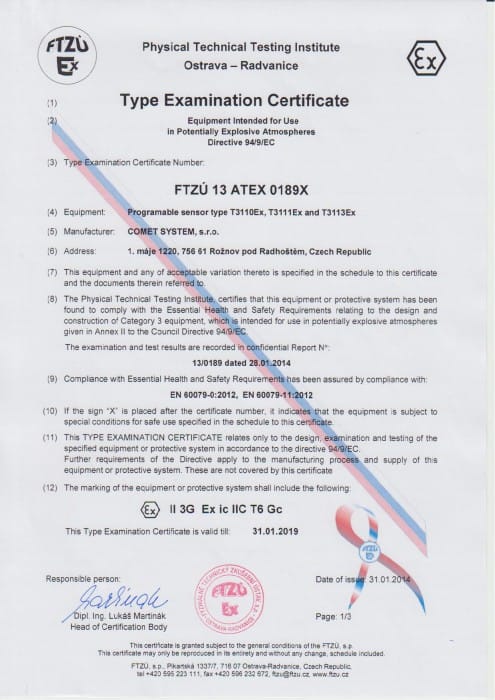

 Certificate: FTZÚ 13 ATEX 0189X
 Marking: EX ll 3G Ex ic llC T6 Gc
 Operating Temperature: -30 to +60 °C
 Channels: internal temperature and humidity sensor
 Output: 4-20 mA, galvanic isolated
 Power: 9-30 Vdc
 Dimensions: 88.5 x 250 x 39.5 mm; stem length 150 mm
