ARK14127CHSCT 14 x 12 x 7 Inch PC Enclosure with Knock-Out Base, Hinged Screw Transparent Cover

ARK14127CHSCT 14 x 12 x 7 Inch PC Enclosure with Knock-Out Base, Hinged Screw Transparent Cover

SKU: ARK14127CHSCT Download PDF

Now $23,039.00
BEFORE   Now $23,039.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

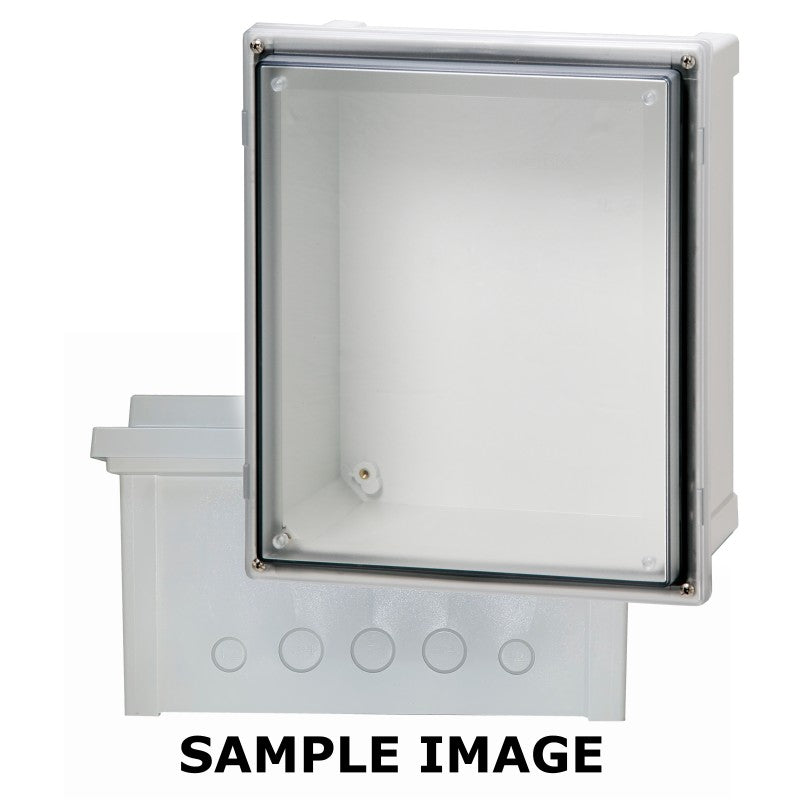

14 x 12 x 7 Inch PC Enclosure with Knock-Out Base, Hinged Screw Transparent Cover This enclosure comprises a hinged screw cover and a base equipped with 10-32 brass inserts The cover features a formed-in-place PUR gasket, a stainless hinge pin, and two cover screws The base includes knock-outs of 1/2 and 3/4 inch and is provided with an enclosure mounting foot kit, along with accessory 10-32 screws for panel mounting.

The enclosure is suitable for various environments and is designed with functionality in mind.

Features and Benefits:

    •Hinged screw cover for easy access.

    •Base with 10-32 brass inserts for secure mounting.

    •Includes knock-outs for 1/2 and 3/4 inch.

    •IP66 and IP67 ratings for protection against water and dust.

    •Impact resistance rating IK09.

    •Temperature range from -40 to 175 °F.

Specifications:

 Height (inch) 14
 Width (inch) 12
 Depth (inch) 7
 Height (mm) 355.6
 Width (mm) 304.8
 Depth (mm) 177.8
 Material Polycarbonate
 Base color RAL 7035 -light grey
 Cover color Transparent
 Gasket material Polyurethane
 Temperature °F (continuous) -40 … 175
 Temperature °C (continuous) -40 … 80
 UL/cUL Type UL/cUL 4, 4X,12, 12K and 13
 Ingress Protection (EN 60529) IP66; IP67
 Impact Resistance (EN 62262) IK09
 Electrical insulation Fully insulated
 Halogen free (DIN/VDE 0472, Part 815) Yes
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)/ Cover: UL94-V0 (f1)
 Glow Wire Test (IEC 60695) 960 °C
