ARK14127CHSC 14 x 12 x 7 Inch PC Enclosure with Knock-Out Base, Hinged Screw Cover Opaque

ARK14127CHSC 14 x 12 x 7 Inch PC Enclosure with Knock-Out Base, Hinged Screw Cover Opaque

SKU: ARK14127CHSC Download PDF

Now $19,198.00
BEFORE   Now $19,198.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

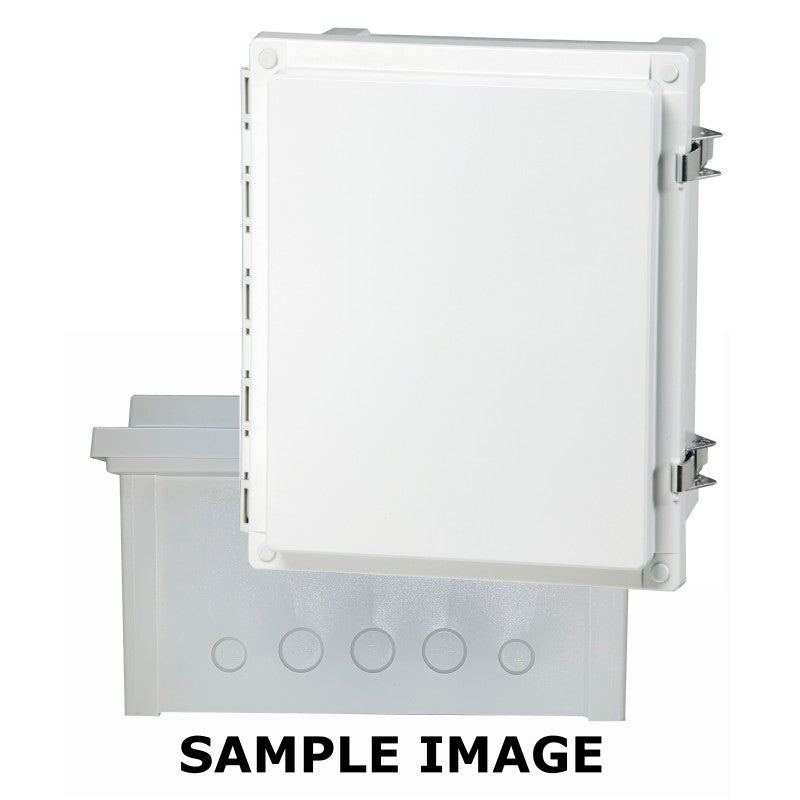

The 14 x 12 x 7 Inch PC Enclosure features a knock-out base and a hinged screw cover designed with opaque polycarbonate material It is compliant with UL Type NEMA 4, 4X, 12, 12K, and 13 standards, providing robust protection in harsh environments with an ingress protection rating of IP66 and IP67 This enclosure comes equipped with a base that includes both 1/2 and 3/4 inch knock-outs and features a formed-in-place PUR gasket, a stainless hinge pin, and two cover screws, making it suitable for various applications.

Features and Benefits:

    •Made from durable polycarbonate material.

    •Hinged screw cover for easy access.

    •Ingress protection ratings of IP66 and IP67.

    •Compliant with UL Type ratings providing enhanced safety.

    •Available with knock-outs for flexible installation.

Specifications:

 Dimensions (inches) 14 x 12 x 7
 Dimensions (mm) 355.6 x 304.8 x 177.8
 Materials Polycarbonate
 Base color RAL 7035 - light grey
 Cover color RAL 7035 - light grey
 Temperature (°F) -40 … 175
 Temperature (°C) -40 … 80
 UL/cUL Type UL/cUL 4, 4X, 12, 12K and 13
 Ingress Protection (EN 60529) IP66; IP67
 Impact Resistance (EN 62262) IK09
 Electrical insulation Fully insulated
 Halogen free Yes
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)
 Glow Wire Test (IEC 60695) 960 °C
