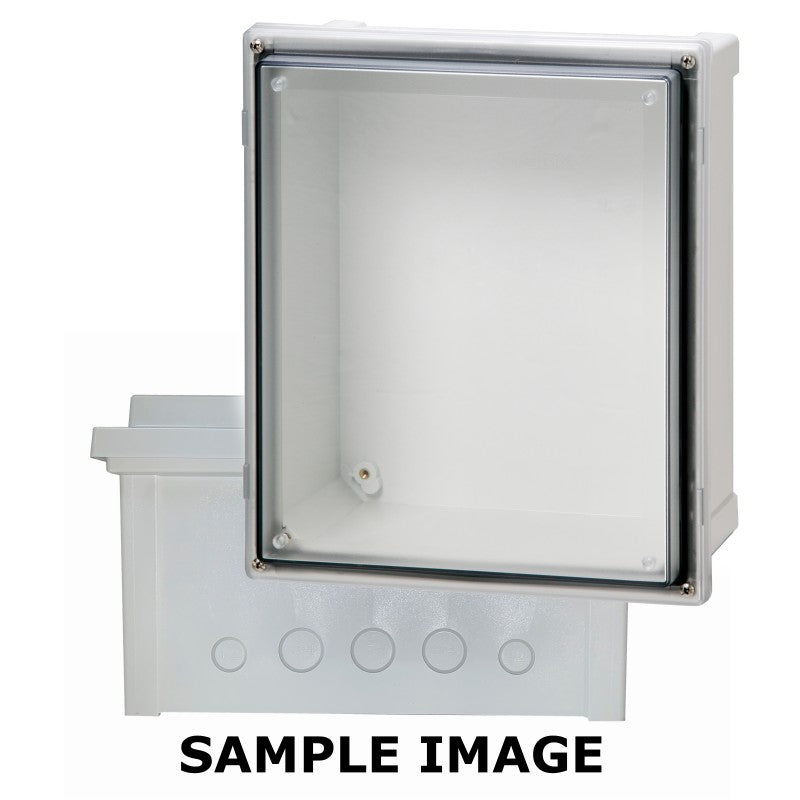

ARK12106SCT 12 x 10 x 6 Inch PC Enclosure with Knock-Out Base with Transparent Cover

ARK12106SCT 12 x 10 x 6 Inch PC Enclosure with Knock-Out Base with Transparent Cover

SKU: ARK12106SCT Download PDF

Now $18,513.00
BEFORE   Now $18,513.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

This product features a 12 x 10 x 6 inch PC enclosure designed with a knock-out base and a transparent cover It includes a screw cover, a base equipped with 10-32 brass inserts, cover formed in place PUR gasket, and 4 stainless cover screws The base accommodates 1/2 and 3/4 inch knock-outs It is suitable for a variety of applications due to its robust design and compliance with various UL standards.

Features and Benefits:

    •Constructed from polycarbonate for durability.

    •Base color is light grey (RAL 7035).

    •Transparent cover for visibility of contents.

    •Suitable for outdoor and indoor use due to its IP66 and IP67 ratings.

    •Impact resistance rating of IK09 for enhanced protection.

    •Electrical insulation providing safety in operational settings.

    •Halogen-free construction ensuring safety compliance.

    •UV resistance certified under UL 508.

    •Flammability ratings indicate low combustion risk.

Specifications:

 Product nr: 8561559
 Height (inch): 12
 Width (inch): 10
 Depth (inch): 6
 Height (mm): 304.8
 Width (mm): 254
 Depth (mm): 152.4
 Material: Polycarbonate
 Base color: RAL 7035 - light grey
 Cover color: Transparent
 Gasket material: Polyurethane
 Temperature °F (continuous): -40 … 175
 Temperature °C (continuous): -40 … 80
 UL/cUL Type: UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
 Ingress Protection (EN 60529): IP66; IP67;
 Impact Resistance (EN 62262): IK09;
 Electrical insulation: Fully insulated
 Halogen free (DIN/VDE 0472, Part 815): Yes
 UV resistance: UL 508
 Flammability Rating: UL94-5VA (f1)/ Cover: UL94-V0 (f1)
 Glow Wire Test (IEC 60695): 960 °C
