Home / ARK12106CHSSL 12 x 10 x 6 Inch PC Enclosure with Knock-Out Base, Hinged Opaque Cover with Stainless Steel Latches
1 1

ARK12106CHSSL 12 x 10 x 6 Inch PC Enclosure with Knock-Out Base, Hinged Opaque Cover with Stainless Steel Latches

ARK12106CHSSL 12 x 10 x 6 Inch PC Enclosure with Knock-Out Base, Hinged Opaque Cover with Stainless Steel Latches

SKU: ARK12106CHSSL Download PDF

Now $18,552.00
BEFORE   Now $18,552.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

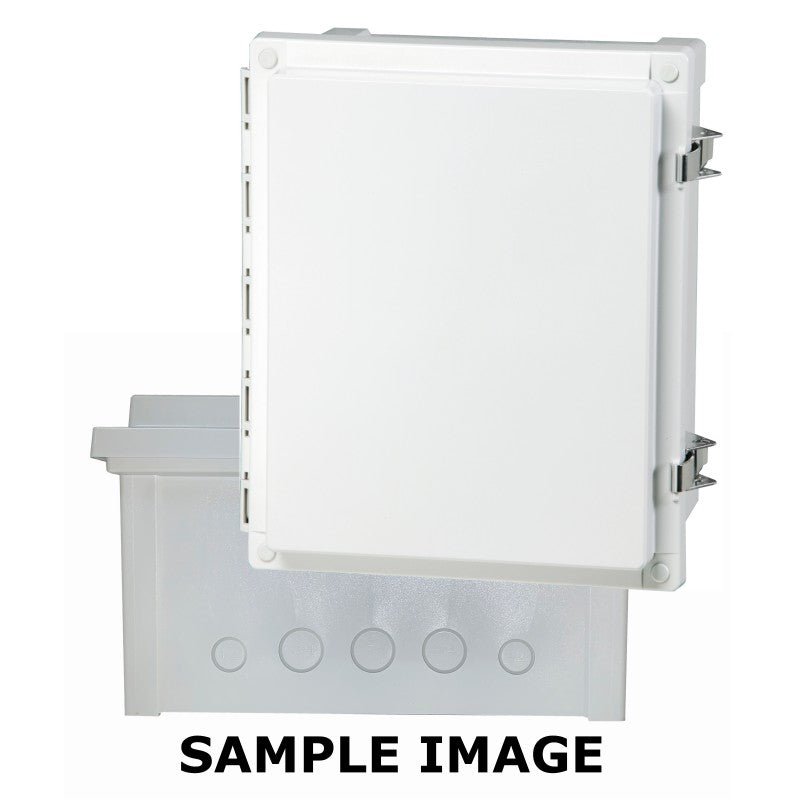

This 12 x 10 x 6 Inch PC enclosure features a knock-out base and a hinged opaque cover secured with stainless steel latches It is designed to provide superior protection with a sturdy structure made from durable polycarbonate The enclosure includes a base with 10-32 brass inserts and knock-outs for easy access It is rated for UL Type NEMA 4, 4X, 6, 6P, 12, 12K, and 13, ensuring it meets stringent environmental protection standards.

Additionally, it features quick release latches and an accessory kit for panel mounting, making installation and maintenance straightforward.

Features and Benefits:

    •Robust construction with polycarbonate material for durability.

    •Hinged opaque cover with stainless steel latches for secure closure.

    •Includes knock-out base for flexible mounting options.

    •Rated for multiple NEMA types for various environmental conditions.

    •Quick release latches for easy access and maintenance.

    •Accessory kit for simple panel mounting included.

Specifications:

 Dimensions (inch) 12 x 10 x 6
 Dimensions (mm) 304.8 x 254 x 152.4
 Temperature (°F) -40 ... 175
 Temperature (°C) -40 ... 80
 Material Polycarbonate
 Base Color RAL 7035 - light grey
 Cover Color RAL 7035 - light grey
 Gasket Material Polyurethane
 UL/cUL Type UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
 Ingress Protection IP66; IP67
 Impact Resistance IK09
 Electrical Insulation Fully insulated
 Halogen Free Yes
 UV Resistance UL 508
 Flammability Rating UL94-5VA (f1)
 Glow Wire Test 960 °C
