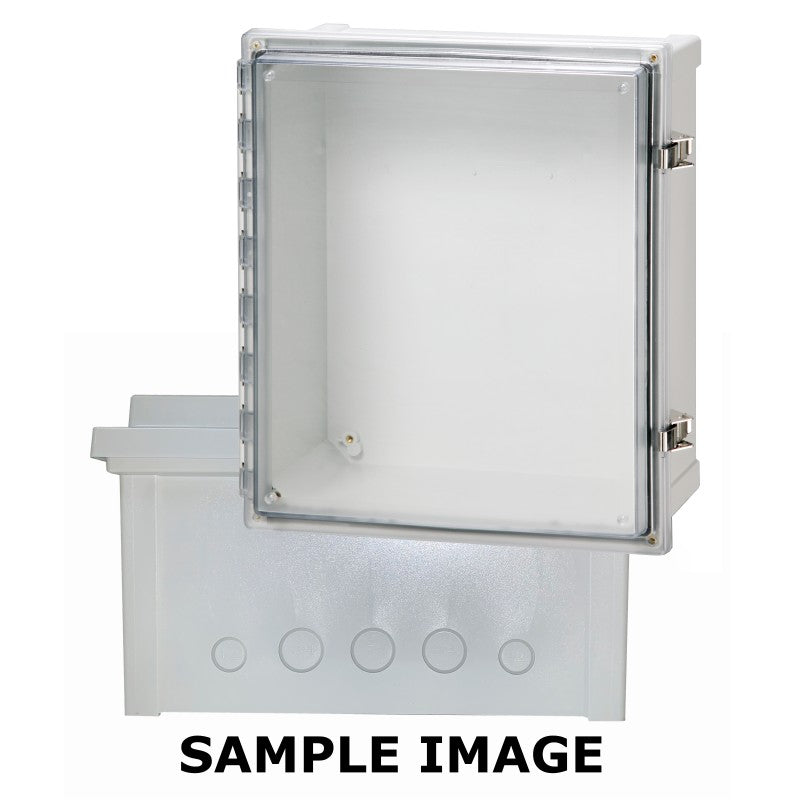

ARK12106CHSCT 12 x 10 x 6 Inch PC Enclosure with Knock-Out Base, Hinged Screw Transparent Cover

ARK12106CHSCT 12 x 10 x 6 Inch PC Enclosure with Knock-Out Base, Hinged Screw Transparent Cover

SKU: SKU: ARK12106CHSCT   Download PDF

Qty:
Regular price Now $19,878.00   Web pricing policy
Regular price BEFORE   Sale price Now $19,878.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information
Resources

Description:

12 x 10 x 6 Inch PC Enclosure with Knock-Out Base, Hinged Screw Transparent Cover PC Enclosure with Knock-Out Base, Hinged Screw Transparent Cover The enclosure features dimensions of 12 inches in height, 10 inches in width, and 6 inches in depth, designed for efficient utility and protection It includes a hinged screw cover and a base with knock-outs, ensuring versatility and ease of installation The construction is made of durable polycarbonate, providing robust protection in various environments.

Features and Benefits:

    •Hinged screw cover for easy access.

    •Base includes 1/2 and 3/4 inch knock-outs.

    •Compliant with UL/cUL 4, 4X, 6, 6P, 12, 12K and 13 ratings.

    •Impact resistance rated IK09.

    •Ingress protection rated IP66; IP67.

    •Fully insulated electrical insulation.

    •Halogen free and UV resistant materials.

Specifications:

 Dimensions Height (inch) 12
 Dimensions Width (inch) 10
 Dimensions Depth (inch) 6
 Dimensions Height (mm) 304.8
 Dimensions Width (mm) 254
 Dimensions Depth (mm) 152.4
 Material Polycarbonate
 Base color RAL 7035 -light grey
 Cover color Transparent
 Gasket material Polyurethane
 Temperature °F (continuous) -40 to 175
 Temperature °C (continuous) -40 to 80
 UL/cUL Type UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
 Ingress Protection (EN 60529) IP66; IP67;
 Impact Resistance (EN 62262) IK09;
 Electrical insulation Fully insulated
 Halogen free (DIN/VDE 0472, Part 815) Yes
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)/ Cover: UL94-V0 (f1)
 Glow Wire Test (IEC 60695) 960 °C
