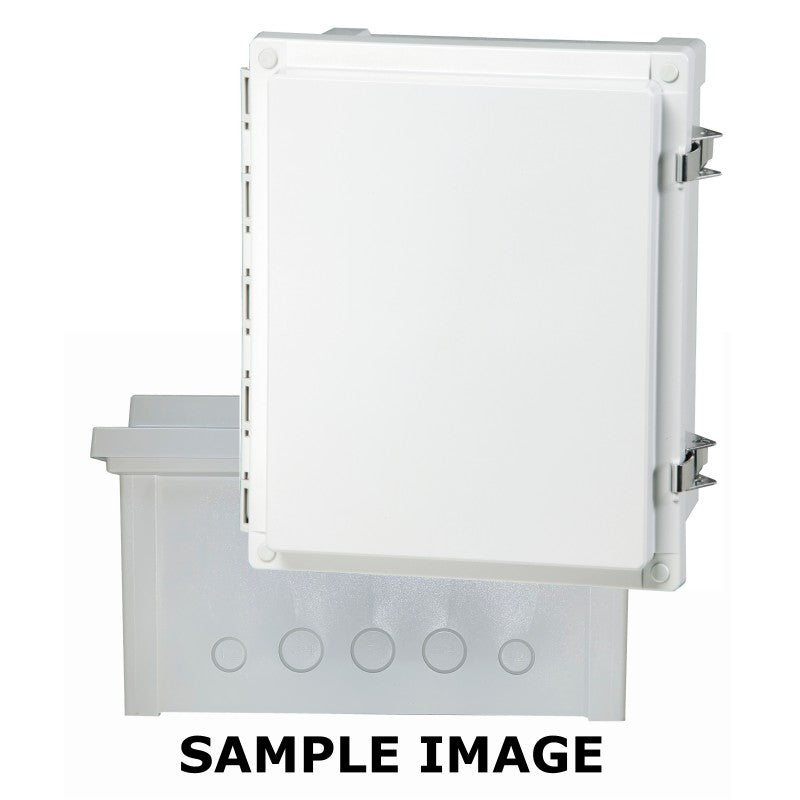

ARK12106CHSC 12 x 10 x 6 Inch PC Enclosure with Knock-Out Base, Hinged Screw Cover Opaque

ARK12106CHSC 12 x 10 x 6 Inch PC Enclosure with Knock-Out Base, Hinged Screw Cover Opaque

SKU: ARK12106CHSC Download PDF

Now $16,566.00
BEFORE   Now $16,566.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

PC Enclosure with Knock-Out Base, Hinged Screw Cover Opaque The enclosure is designed to house and protect electrical equipment and switchgear It offers a durable polycarbonate construction with a hinged screw cover for easy access The base includes knock-outs for flexibility in installation, along with a formed in place PUR gasket and stainless hinge pin The design meets the requirements for various UL and Ingress Protection ratings.

Features and Benefits:

    •Durable polycarbonate construction.

    •Hinged screw cover for easy access.

    •Knock-out base for flexible installation.

    •IP66 and IP67 rated for protection against dust and moisture.

    •Impact resistant with IK09 rating.

    •Fully insulated electrical insulation.

Specifications:

 Dimensions (inch) 12 x 10 x 6
 Dimensions (mm) 304.8 x 254 x 152.4
 Material Polycarbonate
 Base color RAL 7035 - light grey
 Cover color RAL 7035 - light grey
 Temperature (°F continuous) -40 … 175
 Temperature (°C continuous) -40 … 80
 UL/cUL Type UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
 Ingress Protection IP66; IP67
 Impact Resistance IK09
 Electrical insulation Fully insulated
 Halogen free Yes
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)
 Glow Wire Test 960 °C
