ARK1086SCT 10 x 8 x 6 Inch PC Enclosure with Knock-Out Base with Transparent Cover

ARK1086SCT 10 x 8 x 6 Inch PC Enclosure with Knock-Out Base with Transparent Cover

SKU: ARK1086SCT Download PDF

Now $13,816.00
BEFORE   Now $13,816.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

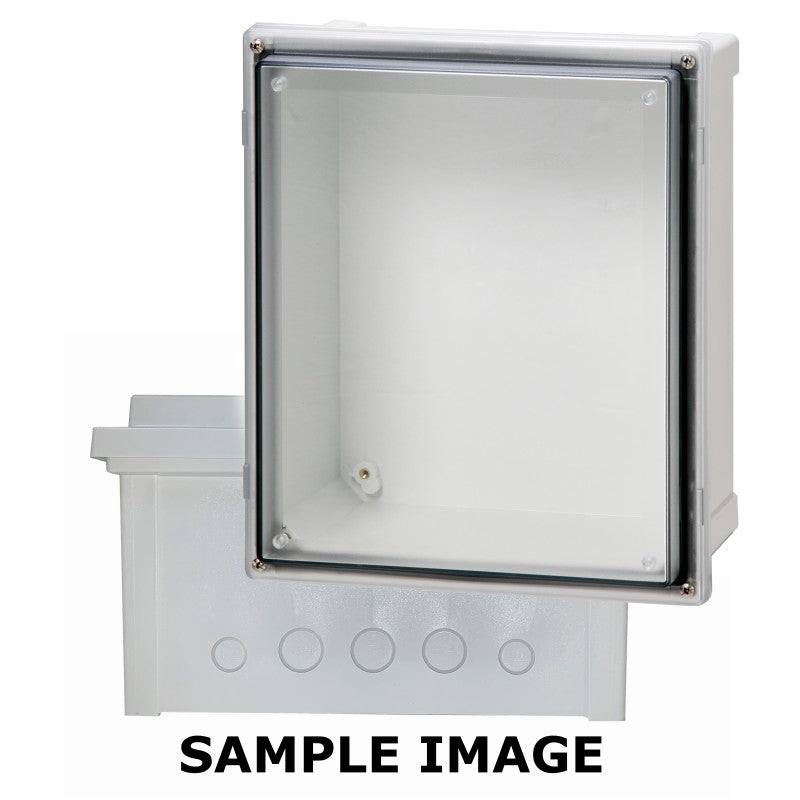

10 x 8 x 6 Inch PC Enclosure with Knock-Out Base with Transparent Cover This enclosure features a screw cover, a base with 10-32 brass inserts, and a transparent cover with formed in place PUR gasket and 4 stainless cover screws The base includes 1/2 and 3/4 inch knock-outs and comes with an enclosure mounting foot kit along with accessory 10-32 screws for panel mounting.

Features and Benefits:

    •UL Type NEMA 4, 4X, 6, 6P, 12, 12K and 13.

    •Ingress Protection (IP66; IP67).

    •Impact resistance IK09.

    •Fully insulated electrical insulation.

    •Halogen free.

    •UV resistance according to UL 508.

    •Flammability rating UL94-5VA (f1) and UL94-V0 (f1) for the cover.

    •Glow Wire Test at 960 °C.

Specifications:

 Dimensions (Height x Width x Depth): 10 x 8 x 6 inch (254 x 203.2 x 152.4 mm)
 Material: Polycarbonate
 Base color: RAL 7035 - light grey
 Cover color: Transparent
 Gasket material: Polyurethane
 Temperature (continuous) °F: -40 … 175
 Temperature (continuous) °C: -40 … 80
 UL/cUL Type: UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
 UL 1741 Compliance: Yes
 Electrical insulation: Fully insulated
 Glowing Wire Test (IEC 60695): 960 °C
