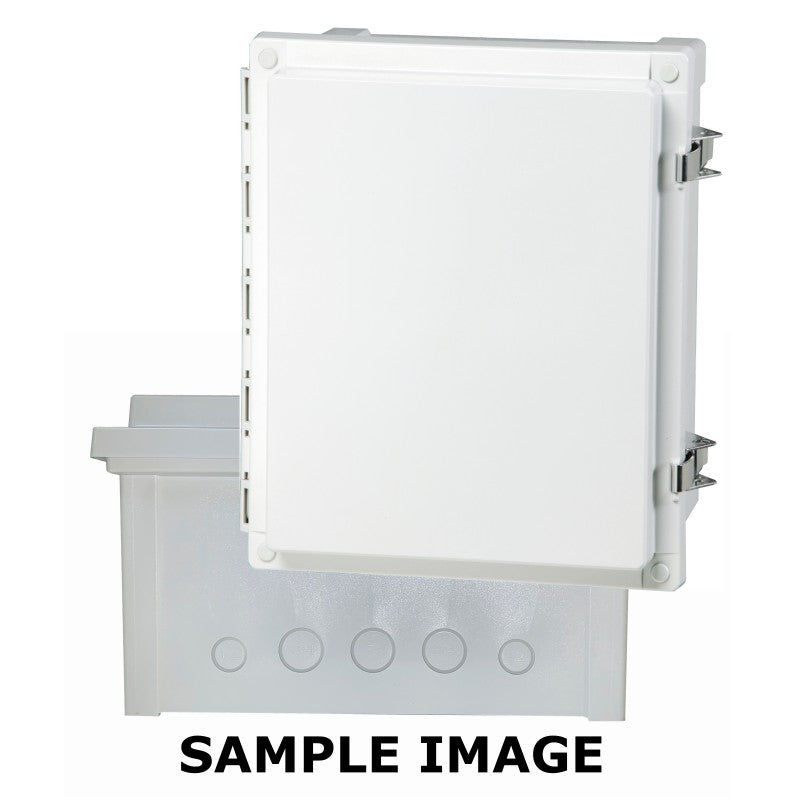

ARK1086CHSSL PC Enclosure with Knock-Out Base, Hinged Opaque Cover with Stainless Steel Latches

ARK1086CHSSL PC Enclosure with Knock-Out Base, Hinged Opaque Cover with Stainless Steel Latches

SKU: ARK1086CHSSL Download PDF

Now $16,229.00
BEFORE   Now $16,229.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

10 x 8 x 6 Inch PC Enclosure with Knock-Out Base, Hinged Opaque Cover with Stainless Steel Latches This PC enclosure features a hinged cover and a base with brass inserts and a formed in place PUR gasket It includes a stainless hinge pin, quick release latches, and various knock-out options for installation It is designed to be durable and suitable for various environments.

Features and Benefits:

    •UL Type Ratings: UL/cUL 4, 4X, 6, 6P, 12, 12K and 13.

    •Ingress Protection: IP66, IP67.

    •Impact Resistance: IK09.

    •Materials: Polycarbonate with light grey color.

    •Temperature Range: -40 to 175 °F (-40 to 80 °C).

    •Electrical insulation: Fully insulated.

    •Halogen free.

    •UV resistant.

    •High flammability rating.

    •Glow Wire Test rating of 960 °C.

    •Suitable for outdoor and indoor installations.

    •Used for protecting electrical equipment and connections.

Specifications:

 Dimensions (inches) 10 x 8 x 6
 Dimensions (mm) 254 x 203.2 x 152.4
 Base color RAL 7035 - light grey
 Cover color RAL 7035 - light grey
 Gasket material Polyurethane
 Thermal Rating (continuous) -40 to 175 °F (-40 to 80 °C)
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)
 Glow Wire Test (IEC 60695) 960 °C
