Home / ARK1086CHSSL 10 x 8 x 6 Inch PC Enclosure with Knock-Out Base, Hinged Opaque Cover with Stainless Steel Latches
1 1

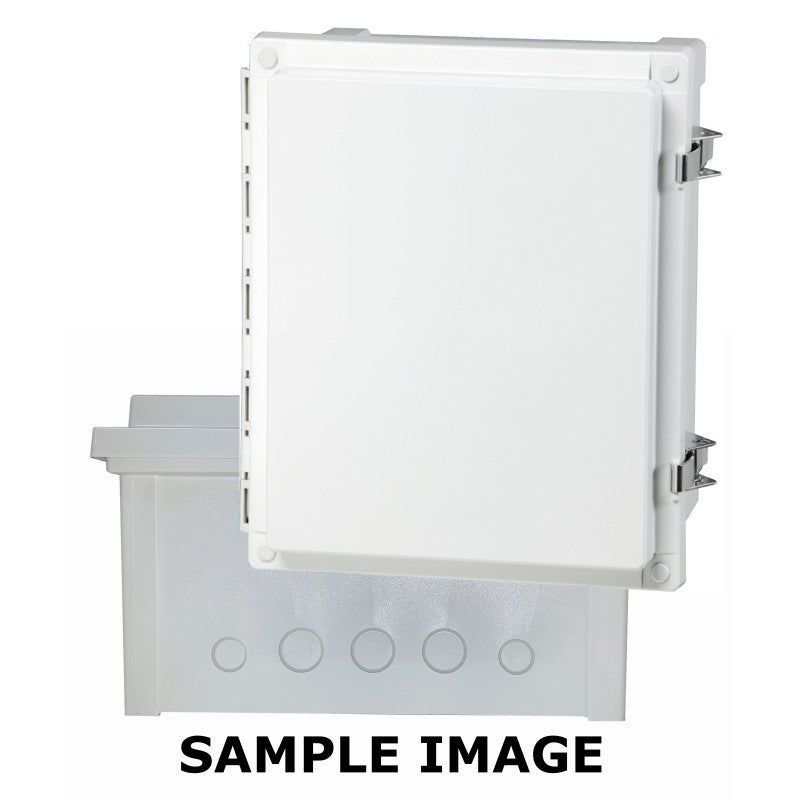

ARK1086CHSSL 10 x 8 x 6 Inch PC Enclosure with Knock-Out Base, Hinged Opaque Cover with Stainless Steel Latches

ARK1086CHSSL 10 x 8 x 6 Inch PC Enclosure with Knock-Out Base, Hinged Opaque Cover with Stainless Steel Latches

SKU: ARK1086CHSS Download PDF

Now $15,926.00
BEFORE   Now $15,926.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

10 x 8 x 6 Inch PC Enclosure with Knock-Out Base, Hinged Opaque Cover with Stainless Steel Latches The enclosure features a hinged cover with stainless steel latches and a base that includes 10-32 brass inserts It is designed with a knock-out base and comes with a formed-in-place PUR gasket for protection The unit is suitable for various environmental conditions, boasting IP66 and IP67 ratings for ingress protection.

It is made from polycarbonate material, ensuring durability and resistance to various temperatures and environments.

Features and Benefits:

    •UL Type NEMA 4, 4X, 6, 6P, 12, 12K and 13 compliant.

    •IP66 and IP67 ingress protection ratings.

    •Impact resistance rated IK09.

    •Includes quick release latches for easy access.

    •Constructed with stainless steel latches for durability.

    •Provided with a gasket material made from polyurethane to ensure sealing.

Specifications:

 Dimensions: Height (inch) 10
 Dimensions: Width (inch) 8
 Dimensions: Depth (inch) 6
 Material Polycarbonate
 Base color RAL 7035 - light grey
 Cover color RAL 7035 - light grey
 Temperature (°F) continuous -40 … 175
 Temperature (°C) continuous -40 … 80
 UL/cUL Type UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
 Ingress Protection (EN 60529) IP66; IP67
 Impact Resistance (EN 62262) IK09
 Electrical insulation Fully insulated
 Halogen free (DIN/VDE 0472, Part 815) Yes
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)
 Glow Wire Test (IEC 60695) 960 °C
