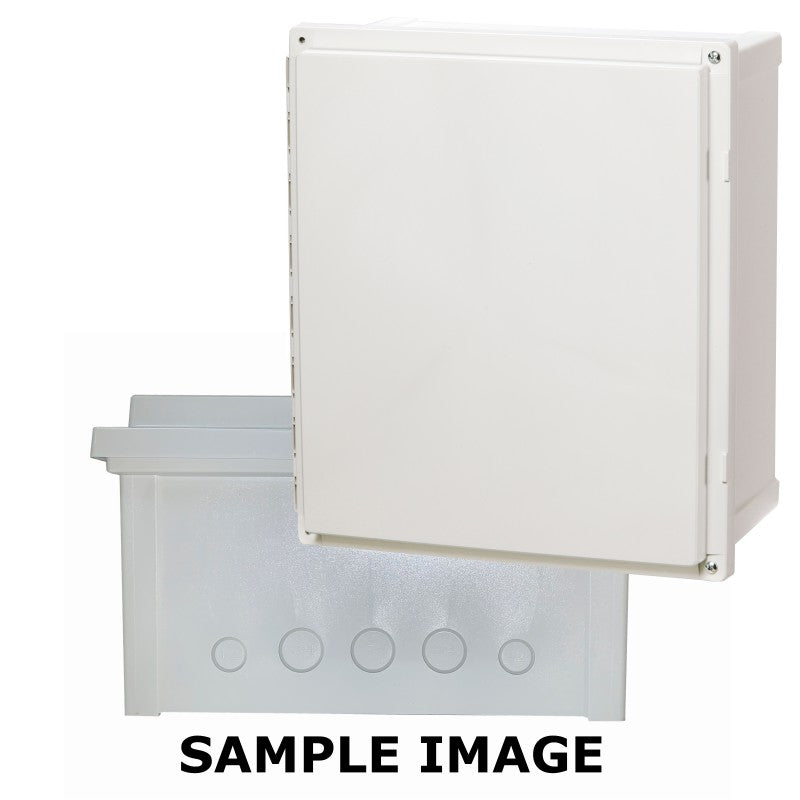

ARK1086CHSC 10 x 8 x 6 Inch PC Enclosure with Knock-Out Base, Hinged Screw Cover Opaque

ARK1086CHSC 10 x 8 x 6 Inch PC Enclosure with Knock-Out Base, Hinged Screw Cover Opaque

SKU: ARK1086CHSC Download PDF

Now $14,138.00
BEFORE   Now $14,138.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

This product is a 10 x 8 x 6 inch polycarbonate enclosure featuring a knock-out base and a hinged screw cover It is opaque in color and meets multiple UL type ratings including 4, 4X, 6, 6P, 12, 12K and 13 The enclosure includes a hinged screw cover, a base with 10-32 brass inserts, and is equipped with a formed in place PUR gasket The stainless hinge pin and cover screws are included, as well as knock-outs for 1/2 and 3/4 inch.

It comes with an enclosure mounting foot kit and accessory 10-32 screws for panel mounting This product is designed for robust applications and follows strict compliance and rating standards.

Features and Benefits:

    •Constructed from durable polycarbonate material..

    •Equipped with a hinged screw cover for easy access..

    •Includes a knock-out base allowing flexible installation..

    •Weatherproof with IP66 and IP67 ratings..

    •Impact resistant with IK09 rating..

    •Fully insulated for electrical safety..

    •Halogen free and UV resistant..

Specifications:

 Height (inch) 10
 Width (inch) 8
 Depth (inch) 6
 Material Polycarbonate
 Base color RAL 7035 -light grey
 Cover color RAL 7035 -light grey
 Gasket material Polyurethane
 Temperature range (°F) -40 to 175
 Temperature range (°C) -40 to 80
 UL/cUL Type UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
 Ingress Protection (EN 60529) IP66; IP67
 Impact Resistance (EN 62262) IK09
 Electrical insulation Fully insulated
 Halogen free Yes
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)
 Glow Wire Test (IEC 60695) 960 °C
