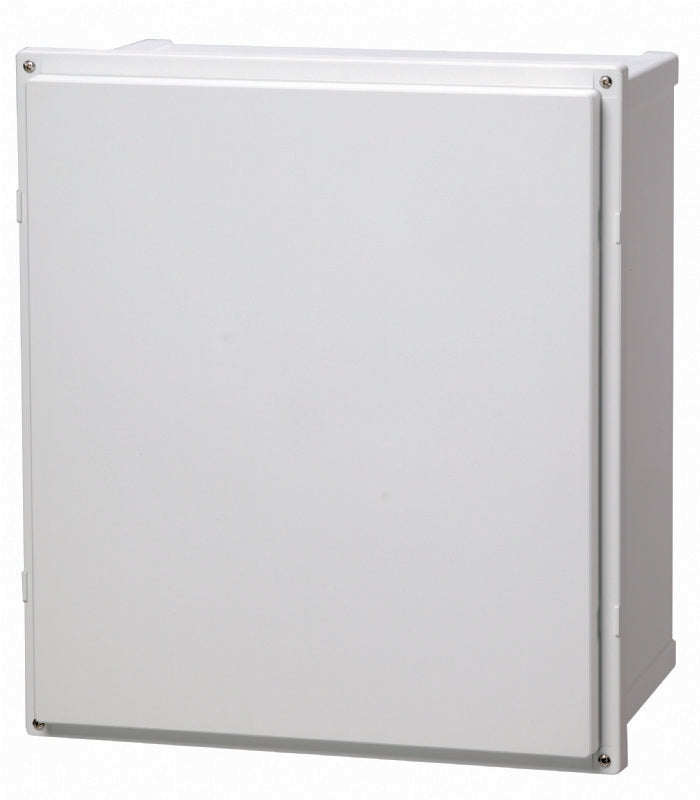

AR884SC 8 x 8 x 4 Inch PC Enclosure Raised Opaque Screw Cover

AR884SC 8 x 8 x 4 Inch PC Enclosure Raised Opaque Screw Cover

SKU: AR884SC Download PDF

Now $11,199.00
BEFORE   Now $11,199.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

8 x 8 x 4 Inch PC Enclosure Raised Opaque Screw Cover This product features a base with 10-32 brass inserts, a cover with formed in place PUR gasket, and 4 stainless cover screws It is designed for use with UL Type NEMA 4, 4X, 6, 6P, 12, 12K and 13 and meets the IP66 and IP67 ratings, making it suitable for various environments.

Features and Benefits:

    •Constructed from durable polycarbonate material.

    •Gasket made from polyurethane for enhanced sealing.

    •Ingress Protection rated at IP66 and IP67.

    •Impact Resistance rated at IK09.

    •Fully insulated with electrical insulation.

    •Halogen free for environmental safety.

    •UV resistance compliant with UL 508.

    •Meets Flammability Rating of UL94-5VA (f1).

    •Glow Wire Test rating of 960 °C.

Specifications:

 Dimensions (Height x Width x Depth in inches): 8 x 8 x 4
 Dimensions (Height x Width x Depth in mm): 203.2 x 203.2 x 101.6
 Temperature (Continuous): -40 … 175 °F, -40 … 80 °C
 UL/cUL Type Ratings: UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
 Ingress Protection (EN 60529): IP66; IP67
 Impact Resistance (EN 62262): IK09
 Electrical Insulation: Fully insulated
 Halogen Free: Yes
 UV Resistance: UL 508
 Flammability Rating: UL94-5VA (f1)
 Glow Wire Test: 960 °C
