Home / AR884CHLT 8 x 8 x 4 Inch PC Enclosure, Hinged Transparent Cover w/Plastic quick release latch
1 1

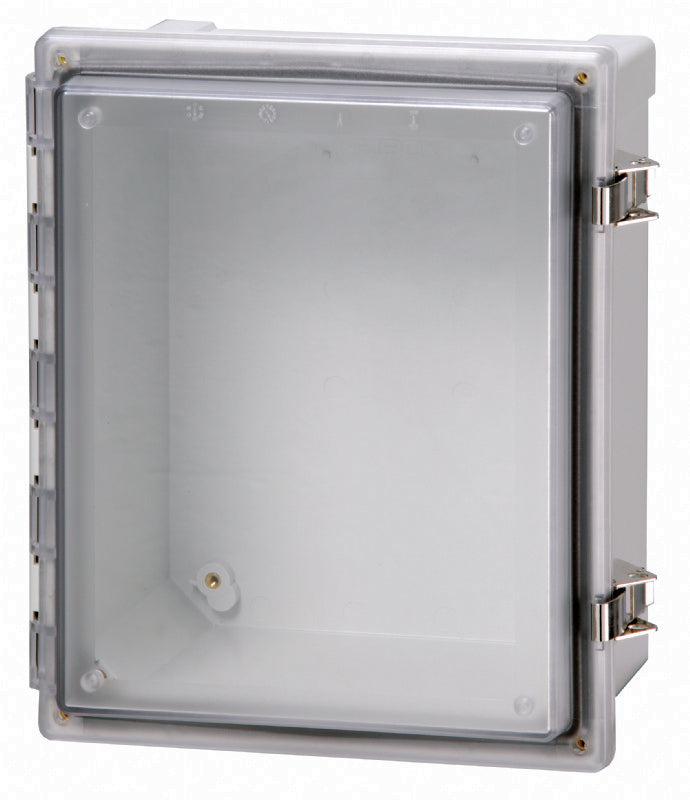

AR884CHLT 8 x 8 x 4 Inch PC Enclosure, Hinged Transparent Cover w/Plastic quick release latch

AR884CHLT 8 x 8 x 4 Inch PC Enclosure, Hinged Transparent Cover w/Plastic quick release latch

SKU: AR884CHLT Download PDF

Now $17,526.00
BEFORE   Now $17,526.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

The 8 x 8 x 4 Inch PC Enclosure features a hinged transparent cover with a plastic quick release latch It is constructed from polycarbonate material and complies with UL/cUL type ratings of 4, 4X, 6, 6P, 12, 12K, and 13 The enclosure offers excellent ingress protection ratings of IP66 and IP67, making it suitable for harsh environments The enclosure is designed with a base that includes 10-32 brass inserts and is equipped with a formed in place PUR gasket.

Additionally, it features a stainless hinge pin, quick release latches, and an enclosure mounting foot kit, along with accessory screws for panel mounting.

Features and Benefits:

    •Hinged transparent cover for easy access.

    •Quick release latch for simple operation.

    •Constructed from durable polycarbonate material.

    •Ingress protection ratings of IP66 and IP67.

    •Suitable for harsh environments.

    •Fully insulated for electrical safety.

    •UV resistant per UL 508.

    •Halogen free according to DIN/VDE 0472, Part 815.

Specifications:

 Dimensions (inch) 8 x 8 x 4
 Dimensions (mm) 203.2 x 203.2 x 101.6
 Material Polycarbonate
 Base color RAL 7035 - light grey
 Cover color Transparent
 Gasket material Polyurethane
 Temperature (°F) -40 to 175
 Temperature (°C) -40 to 80
 UL/cUL Type UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
 Ingress Protection (EN 60529) IP66; IP67
 Impact Resistance (EN 62262) IK09
 Electrical insulation Fully insulated
 UV resistance UL 508
 Flammability Rating UL94-5VA (f1)/ Cover: UL94-V0 (f1)
 Glow Wire Test (IEC 60695) 960 °C
