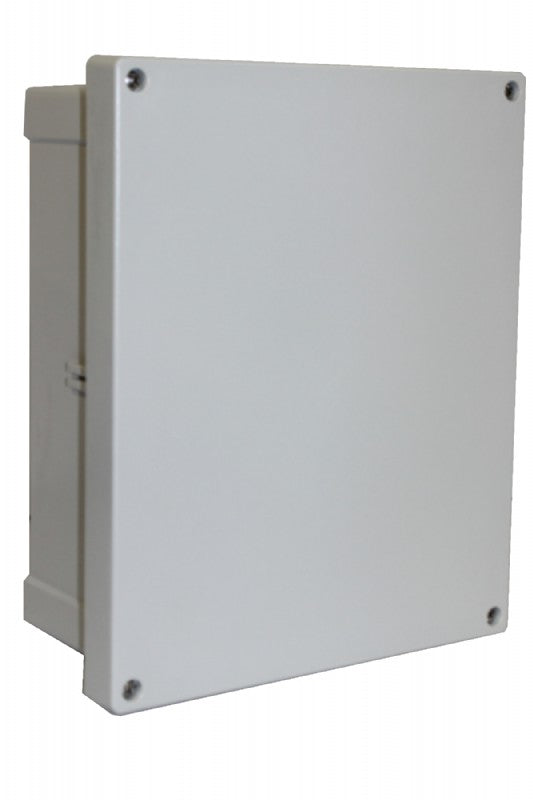

AR864CHFSC 8 x 6 x 4 Inch PC Enclosure, Hinged Opaque Flat Screw Cover

AR864CHFSC 8 x 6 x 4 Inch PC Enclosure, Hinged Opaque Flat Screw Cover

SKU: AR864CHFSC Download PDF

Now $12,054.00
BEFORE   Now $12,054.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Resources

Description:

8 x 6 x 4 Inch PC Enclosure, Hinged Opaque Flat Screw Cover made of polycarbonate and featuring a light grey color The enclosure includes a hinged screw flat cover and comes with a base that has 10-32 brass inserts, a formed in place PUR gasket, a stainless hinge pin, and two cover screws It is designed for various ratings including UL Type NEMA 4, 4X, 6, 6P, 12, 12K, and 13 with an ingress protection of IP66 and IP67, as well as an impact resistance rating of IK09.

Features and Benefits:

    •Constructed from polycarbonate for durability.

    •Hinged opaque flat screw cover for easy access.

    •Inclusion of a formed in place PUR gasket for sealed protection.

    •UL/cUL compliance for safety ratings.

    •Ingress protection ratings of IP66 and IP67 for water and dust resistance.

    •Impact resistance rating of IK09.

    •Temperature resistance from -40 ºF to 175 ºF (-40 ºC to 80 ºC).

    •Halogen-free materials for safety.

    •UV resistance for durability in sunlight.

Specifications:

 Dimensions (inch) 8 x 6 x 4
 Dimensions (mm) 203.2 x 152.4 x 101.6
 Material Polycarbonate
 Base Color RAL 7035 - light grey
 Cover Color RAL 7035 - light grey
 Gasket Material Polyurethane
 UL/cUL Type UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
 Ingress Protection (EN 60529) IP66; IP67
 Impact Resistance (EN 62262) IK09
 Electrical Insulation Fully insulated
 Halogen Free (DIN/VDE 0472, Part 815) Yes
 UV Resistance UL 508
 Flammability Rating UL94-5VA (f1)
 Glow Wire Test (IEC 60695) 960 °C
 Temperature Continuous (°F) -40 … 175
 Temperature Continuous (°C) -40 … 80
